Vishay recommends a PCB layout with a thermal pad connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a heat sink.
To ensure reliable soldering, Vishay recommends using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 220°C. The component should be soldered within 3 seconds to 5 seconds, and the solder joints should be inspected for any defects.
According to Vishay, the maximum allowed voltage derating for the TR3D686M016C0070 is 80% of the rated voltage. This means that if the component is rated for 16V, the maximum allowed voltage derating would be 12.8V.
Vishay recommends storing the components in their original packaging or in a similar protective package to prevent mechanical damage. The components should be stored in a dry, cool place, away from direct sunlight and moisture. During shipping, the components should be protected from shock, vibration, and extreme temperatures.
Vishay recommends a reflow soldering profile with a peak temperature of 240°C to 245°C, and a dwell time above 217°C of 60 seconds to 90 seconds. The ramp-up rate should be 1°C to 3°C per second, and the cooling rate should be 3°C to 6°C per second.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TR3D686M016C0070 Overview

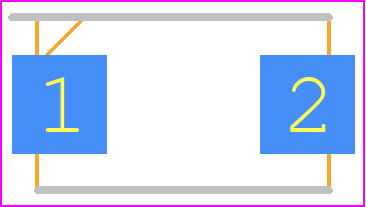

Use the download button to access the TR3D686M016C0070 schematic symbol, PCB footprint, and 3D model.
