TRJC106K025RRJ - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 10UF/25V 10% ESR 800 6032-28

Download TRJC106K025RRJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TRJC106K025RRJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

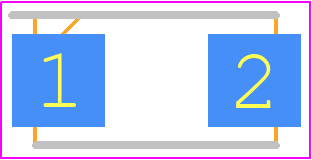

TRJC106K025RRJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - 2312 (6032-28)
click to zoom
3D Models
TRJC106K025RRJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - 2312 (6032-28)
click to zoom

TRJC106K025RRJ Details

  • Manufacturer Part Number:

    TRJC106K025RRJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    10 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    800 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0019 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    148 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TRJC106K025RRJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TRJC106K025RRJ is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
  • Yes, TRJC106K025RRJ is designed to withstand high-vibration environments. It has a robust construction and is qualified to meet the requirements of IEC 60068-2-6, which ensures its reliability in applications with high mechanical stress.
  • To prevent damage, handle TRJC106K025RRJ by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the component during assembly.
  • The maximum operating temperature range for TRJC106K025RRJ is -55°C to +125°C. However, it's recommended to derate the component's power rating according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • Yes, TRJC106K025RRJ is designed to operate in humid environments. It meets the requirements of IEC 60068-2-78, which ensures its reliability in applications with high humidity. However, it's recommended to follow proper storage and handling procedures to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRJC106K025RRJ Overview

Use the download button to access the TRJC106K025RRJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRJC1, or try a keyword search, such as Tantalum Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
