TRJC107M010SRJ - Kyocera AVX

Description: Cap Tant Solid 100uF 10V C CASE 20% (6 X 3.2 X 2.6mm) SMD 6032-28 0.5 Ohm 125C T/R

Download TRJC107M010SRJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TRJC107M010SRJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

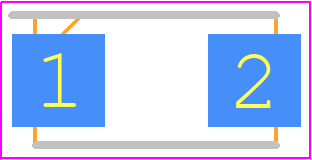

TRJC107M010SRJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - TRJC107M010SRJ
click to zoom
3D Models
TRJC107M010SRJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - TRJC107M010SRJ
click to zoom

TRJC107M010SRJ Details

  • Manufacturer Part Number:

    TRJC107M010SRJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    500 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0075 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    188 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TRJC107M010SRJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TRJC107M010SRJ is available in the Kyocera AVX Components' recommended land pattern document, which can be found on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements for optimal assembly and reliability.
  • While the TRJC107M010SRJ is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Engineers should consult with Kyocera AVX Components' application notes and thermal modeling tools to determine the component's suitability for their specific use case.
  • The TRJC107M010SRJ is a general-purpose capacitor, and its high-frequency behavior may not be explicitly stated in the datasheet. However, Kyocera AVX Components provides Spice models and impedance vs. frequency curves for their capacitors, which can help engineers simulate and analyze the component's behavior in high-frequency applications.
  • Yes, the TRJC107M010SRJ is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS directive and are compatible with lead-free soldering processes. However, engineers should still follow the recommended soldering profiles and processes to ensure reliable assembly and minimize the risk of defects.
  • The expected lifespan of TRJC107M010SRJ depends on various factors, including the application, operating conditions, and environmental factors. Kyocera AVX Components provides reliability data and failure rate estimates in their datasheets and application notes. Engineers can use this information to estimate the component's lifespan and plan for maintenance and replacement strategies accordingly.
