TS-13L-A1-2-R1-E-H - Salecom

Description: Configuration: PCB through-hole mounting. Number of terminals: 5. Voltage DC: 28V. AC[V]: 250V. AC/DC [A]: 3A. Contact configuration (pole/circuit): SPDT. Switch Type: 1-2. Operating temperature range min (°C): -30°C. Operating temperature range max (°C): +85°C.

Download TS-13L-A1-2-R1-E-H Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TS-13L-A1-2-R1-E-H model

Email notifications will be applied after download.

Send part feedback

Symbol

TS-13L-A1-2-R1-E-H - Salecom - PCB symbol

PCB Footprints

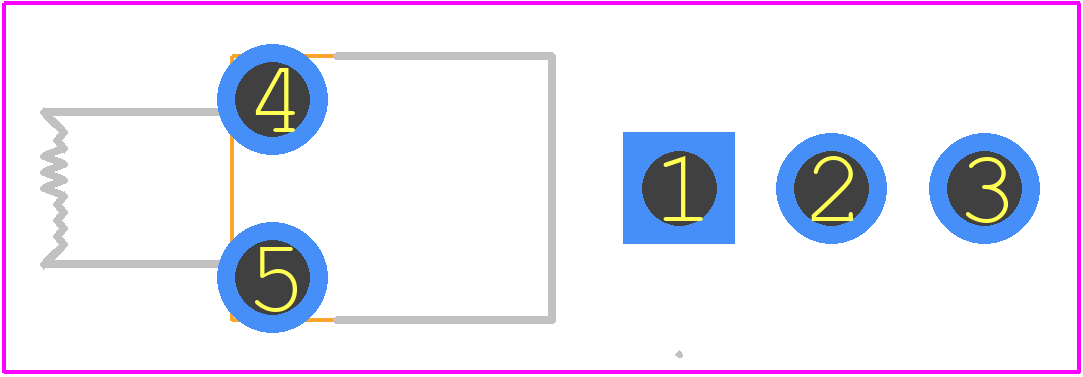

TS-13L-A1-2-R1-E-H - Salecom PCB footprint - Other - Other - TS-13L-A1-2-R1-E-H-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS-13L-A1-2-R1-E-H
Part Number TS-13L-A1-2-R1-E-H
Manufacturer Salecom
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - TS-13L-A1-2-R1-E-H-2
Released Date Mar 19, 2025
Last Modified Date May 26, 2025 4:38 PM UTC
Pinout / Pin List Click Here (Member Only)

TS-13L-A1-2-R1-E-H Details

Manufacturer Part Number:
TS-13L-A1-2-R1-E-H
Manufacturer:
Salecom Electronics Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

TS-13L-A1-2-R1-E-H Overview

Use the download button to access the TS-13L-A1-2-R1-E-H schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TS-13, or try a keyword search, such as Other Switches
