TS1854AIPT footprint, schematic symbol and 3D model by STMicroelectronics

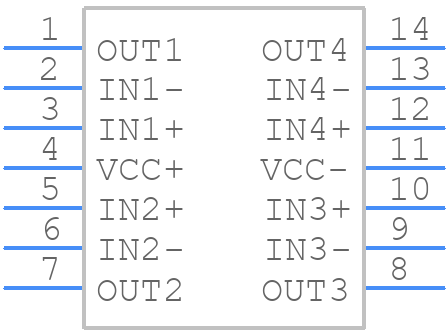

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS1854AIPT
Part Number TS1854AIPT
Manufacturer STMicroelectronics
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP-14 package_14
Released Date Apr 8, 2026
Last Modified Date Apr 8, 2026 10:32 AM UTC
Pinout / Pin List Click Here (Member Only)

TS1854AIPT Details

Manufacturer Part Number:
TS1854AIPT
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
TSSOP
Package Description:
ROHS COMPLIANT, TSSOP-14
Pin Count:
14
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
STMicroelectronics
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.055 µA
Bias Current-Max (IIB) @25C:
0.063 µA
Common-mode Reject Ratio-Min:
60 dB
Common-mode Reject Ratio-Nom:
90 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
1000 µV
JESD-30 Code:
R-PDSO-G14
Length:
5 mm
Low-Bias:
NO
Low-Offset:
NO
Micropower:
YES
Number of Functions:
14
Number of Terminals:
4
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Min:
0.1 V/us
Slew Rate-Nom:
0.2 V/us
Supply Current-Max:
0.22 mA
Supply Voltage Limit-Max:
7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Unity Gain BW-Nom:
600
Voltage Gain-Min:
3160
Wideband:
NO
Width:
4.4 mm
