TS2P4M20-BPE - Switchcraft

Description: Circular Push Pull Connectors Front Panel Mount PC Contact Sealed4-20 M

Download TS2P4M20-BPE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TS2P4M20-BPE - Switchcraft - PCB symbol
click to zoom
PCB Footprints

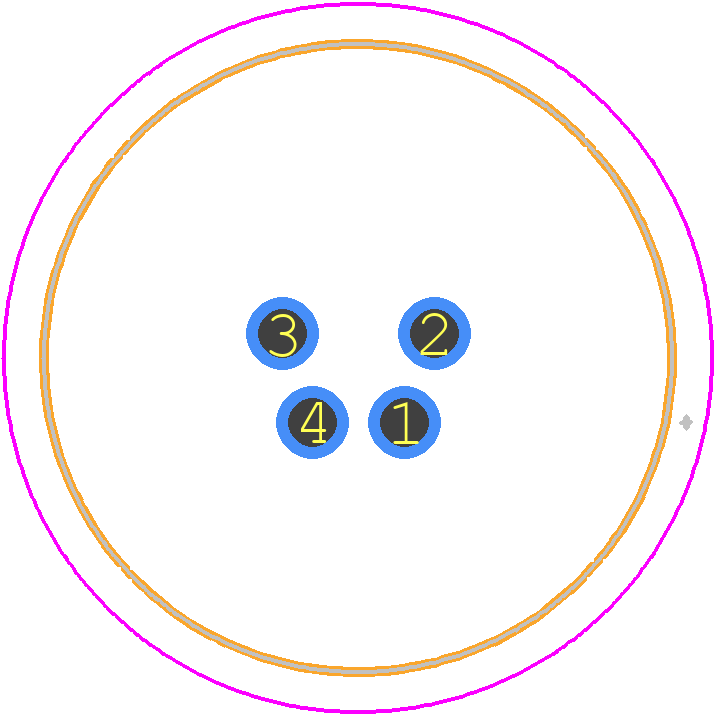

TS2P4M20-BPE - Switchcraft PCB footprint - Other - Other - TS2P4M20-BPE-2
click to zoom
3D Models
TS2P4M20-BPE - Switchcraft - 3D model - Other - TS2P4M20-BPE-2
click to zoom

TS2P4M20-BPE Details

  • Manufacturer Part Number:

    TS2P4M20-BPE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • Connector Type:

    CIRCULAR CONNECTOR

TS2P4M20-BPE Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs).
  • Yes, the TS2P4M20-BPE connector is designed for harsh environments and is suitable for outdoor use, with an operating temperature range of -40°C to 125°C.
  • The maximum wire size that can be used with the TS2P4M20-BPE connector is 20 AWG (0.5 mm²).
  • Yes, the TS2P4M20-BPE connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the TS2P4M20-BPE connector has a high-temperature rating of 125°C, making it suitable for use in high-temperature applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS2P4M20-BPE Overview

Use the download button to access the TS2P4M20-BPE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS2P4, or try a keyword search, such as Other Circular Connectors
