TS2P7M26-BPE - Switchcraft

Description: Circular Push Pull Connectors Front Panel Mount PC Contact Sealed7-26 M

Download TS2P7M26-BPE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TS2P7M26-BPE - Switchcraft - PCB symbol
click to zoom
PCB Footprints

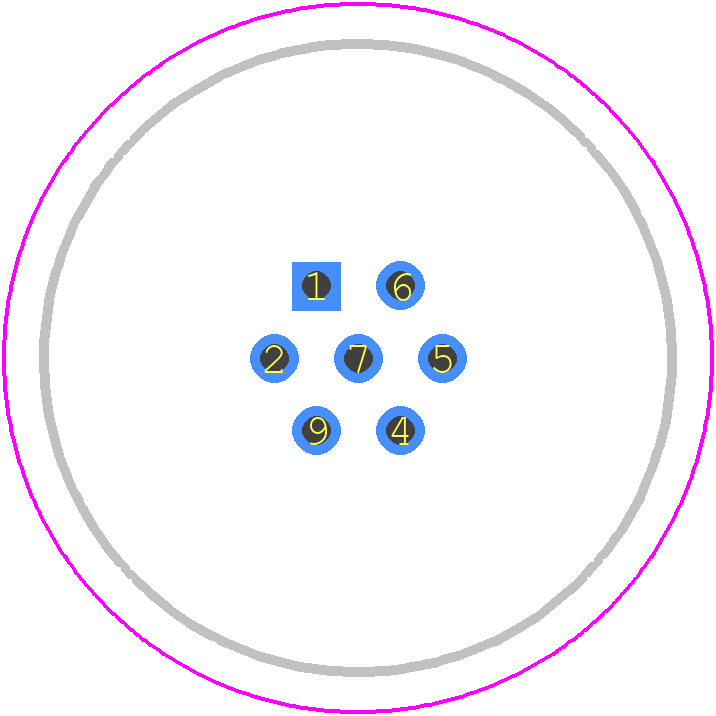

TS2P7M26-BPE - Switchcraft PCB footprint - Other - Other - TS2P7M26-BPE-4
click to zoom
3D Models
TS2P7M26-BPE - Switchcraft - 3D model - Other - TS2P7M26-BPE-4
click to zoom

TS2P7M26-BPE Details

  • Manufacturer Part Number:

    TS2P7M26-BPE

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Switchcraft Conxall

  • Connector Type:

    CIRCULAR CONNECTOR

TS2P7M26-BPE Frequently Asked Questions (FAQs)

  • The operating temperature range of the TS2P7M26-BPE is -55°C to 125°C.
  • Yes, the TS2P7M26-BPE is designed for high-reliability applications, such as aerospace, defense, and industrial control systems.
  • The contact resistance of the TS2P7M26-BPE is typically 10 milliohms maximum.
  • Yes, the TS2P7M26-BPE is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The insulation resistance of the TS2P7M26-BPE is typically 10^9 ohms minimum at 500 VDC.
