Renesas provides a recommended PCB layout guide in their application note (R01AN3804EJ0100) which includes thermal vias, thermal pads, and heat sink design considerations to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 6.5V. Exceeding this voltage may cause damage to the device.
Renesas provides EMC design guidelines in their application note (R01AN3804EJ0100) which include PCB layout considerations, component selection, and shielding recommendations to ensure EMC compliance.
The recommended operating temperature range for the TS3000B3ANRG8 is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3000B3ANRG8 Overview

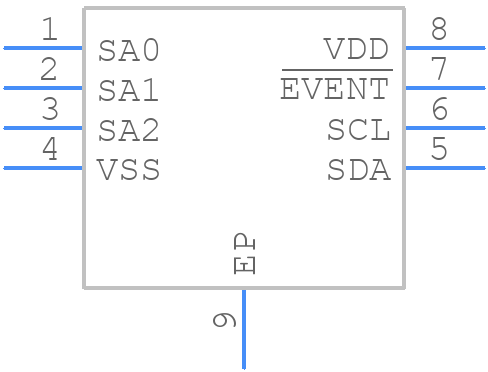

Use the download button to access the TS3000B3ANRG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS300,
or try a keyword search, such as Temperature Sensors
