TS30011-M000QFNR footprint, schematic symbol and 3D model by SEMTECH

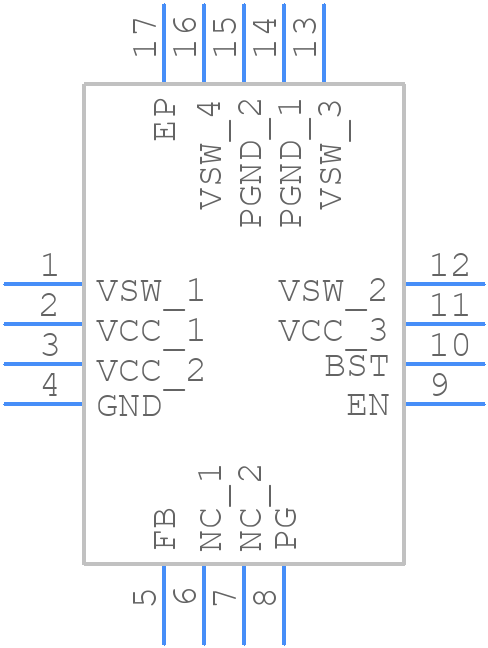

Symbol

click to zoom

PCB Footprints

TS30011-M000QFNR - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16qfn

click to zoom

3D Models

TS30011-M000QFNR - SEMTECH - 3D model - Quad Flat No-Lead - 16qfn

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS30011-M000QFNR
Part Number TS30011-M000QFNR
Manufacturer SEMTECH
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 16qfn
Released Date Mar 10, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TS30011-M000QFNR Details

Manufacturer Part Number:
TS30011-M000QFNR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Semtech Corporation
YTEOL:
7.7
Additional Feature:
ALSO OPERATES IN PFM CONTROL TECHNIQUE; OUTPUT IN ADJUSTABLE MODE IS 0.9 TO 23V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1100 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm

TS30011-M000QFNR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
The TS30011-M000QFNR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The EN pin should be tied to a 1.8V to 3.3V voltage source to enable the device.
The TS30011-M000QFNR supports data rates up to 10.3125 Gbps. However, the actual data rate achieved may depend on the quality of the signal, the PCB layout, and the receiver's capabilities.
Use an oscilloscope to check the signal integrity and eye diagram. Verify the power supply voltage and decoupling. Check the PCB layout for signal integrity issues. Consult the datasheet and application notes for troubleshooting guidelines.
The TS30011-M000QFNR is primarily designed for PCIe applications, but it can also be used for other high-speed serial interfaces such as SATA, SAS, and USB. However, additional components and modifications may be required to ensure compatibility.

Trust Checks

Community Provided

System Verified

Community Approved

TS30011-M000QFNR Overview

Use the download button to access the TS30011-M000QFNR schematic symbol, PCB footprint, and 3D model.
