TS30011-M033QFNR footprint, schematic symbol and 3D model by SEMTECH

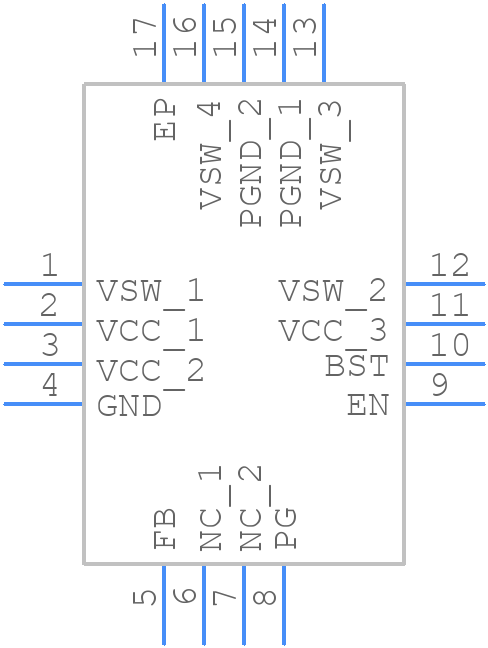

Symbol

click to zoom

PCB Footprints

TS30011-M033QFNR - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16qfn

click to zoom

3D Models

TS30011-M033QFNR - SEMTECH - 3D model - Quad Flat No-Lead - 16qfn

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS30011-M033QFNR
Part Number TS30011-M033QFNR
Manufacturer SEMTECH
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 16qfn
Released Date Jun 1, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TS30011-M033QFNR Details

Manufacturer Part Number:
TS30011-M033QFNR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
6 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
7.7
Additional Feature:
ALSO OPERATES IN PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Nom:
3.3 V
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1100 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm

TS30011-M033QFNR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
Ensure good thermal management by providing adequate heat sinking and airflow. Use a thermal interface material to improve heat transfer between the device and the heat sink. Operate the device within the recommended temperature range.
Handle the device in an ESD-protected environment. Use ESD-protective packaging and wrist straps. Ground yourself before handling the device. Avoid touching the device's pins or leads.
Check the power supply voltage and ensure it is within the recommended range. Verify the clock signal frequency and amplitude. Use an oscilloscope to check the signal integrity. Consult the datasheet and application notes for troubleshooting guides.
Operating the device at a different frequency may affect its performance, power consumption, and noise tolerance. Consult the datasheet and application notes for guidance on frequency selection and potential trade-offs.
