TS30012-M000QFNR footprint, schematic symbol and 3D model by SEMTECH

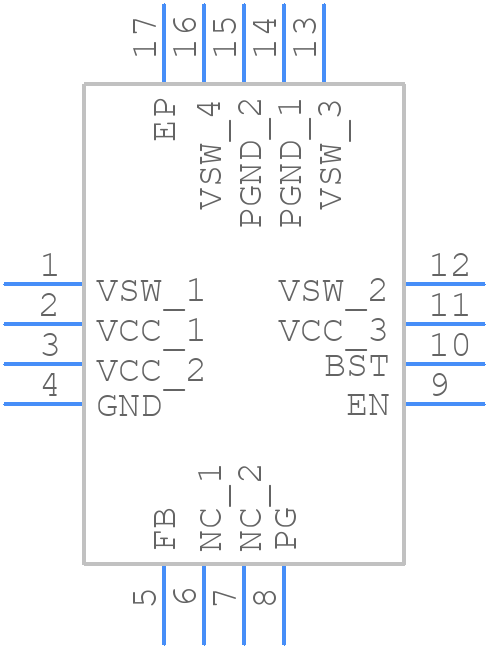

Symbol

click to zoom

PCB Footprints

TS30012-M000QFNR - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3x3 QFN

click to zoom

3D Models

TS30012-M000QFNR - SEMTECH - 3D model - Quad Flat No-Lead - 3x3 QFN

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS30012-M000QFNR
Part Number TS30012-M000QFNR
Manufacturer SEMTECH
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 3x3 QFN
Released Date Jun 17, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TS30012-M000QFNR Details

Manufacturer Part Number:
TS30012-M000QFNR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Semtech Corporation
YTEOL:
7.7
Additional Feature:
ALSO OPERATES IN PFM CONTROL TECHNIQUE; OUTPUT IN ADJUSTABLE MODE IS 0.9 TO 23V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1100 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm
