TS30012-M050QFNR footprint, schematic symbol and 3D model by SEMTECH

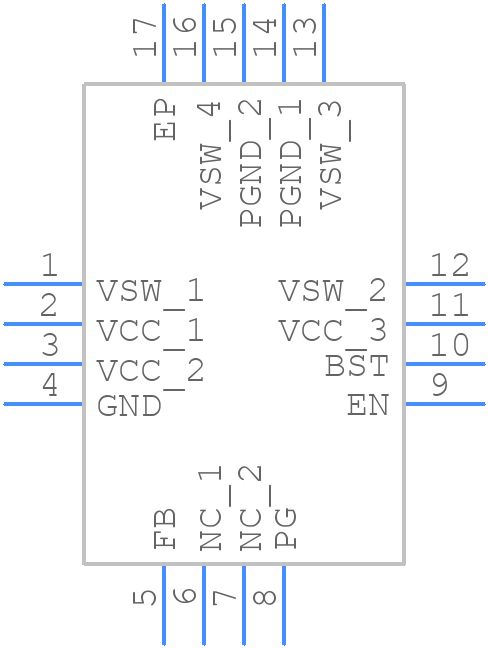

Symbol

click to zoom

PCB Footprints

TS30012-M050QFNR - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16_1

click to zoom

3D Models

TS30012-M050QFNR - SEMTECH - 3D model - Quad Flat No-Lead - QFN16_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS30012-M050QFNR
Part Number TS30012-M050QFNR
Manufacturer SEMTECH
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN16_1
Released Date Jun 21, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TS30012-M050QFNR Details

Manufacturer Part Number:
TS30012-M050QFNR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Semtech Corporation
YTEOL:
7.7
Additional Feature:
ALSO OPERATES IN PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
24 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1100 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm

TS30012-M050QFNR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
The TS30012-M050QFNR requires a single 5V power supply. Ensure the power supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors. Bias the input pins with a 50Ω terminator to prevent signal reflections.
The maximum cable length supported by the TS30012-M050QFNR is 100 meters at 10 Gbps. However, this can be extended up to 150 meters using repeaters or active cables.
Use an oscilloscope to check the signal integrity and eye diagram. Verify the power supply voltage and decoupling. Check for signal reflections and impedance mismatches. Consult the datasheet and application notes for troubleshooting guides.
The TS30012-M050QFNR is a USB 3.2 Gen 2 repeater, but it can be used in other high-speed applications like HDMI or DisplayPort with proper signal conditioning and adapter circuits.

Trust Checks

Expert Contribution

System Verified

Community Approved

TS30012-M050QFNR Overview

Use the download button to access the TS30012-M050QFNR schematic symbol, PCB footprint, and 3D model.
