TS30013-M033QFNR - SEMTECH

Description: Switching Voltage Regulators IC Hi-Eff 3Amp DC/DC Conv 1MHz 3.3V Outpt

Download TS30013-M033QFNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

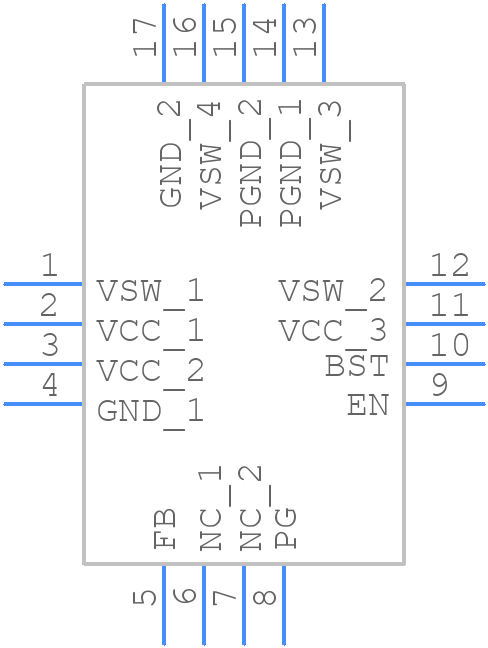

TS30013-M033QFNR - SEMTECH - PCB symbol
click to zoom
PCB Footprints
TS30013-M033QFNR - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TS30013-M033QFNR
click to zoom
3D Models
TS30013-M033QFNR - SEMTECH - 3D model - Quad Flat No-Lead - TS30013-M033QFNR
click to zoom

TS30013-M033QFNR Details

  • Manufacturer Part Number:

    TS30013-M033QFNR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Semtech Corporation

  • YTEOL:

    7.7

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

TS30013-M033QFNR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a ferrite bead to reduce EMI.
  • Ensure good thermal management by providing adequate heat sinking and airflow. Use a thermal interface material to improve heat transfer between the device and the heat sink. Operate the device within the recommended temperature range.
  • The TS30013-M033QFNR has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • The TS30013-M033QFNR is an industrial-grade device, but it may not meet the specific requirements of automotive or aerospace standards. Check with Semtech Corporation for availability of automotive- or aerospace-grade versions of the device.
  • Use a logic analyzer or oscilloscope to monitor the device's signals and verify that they are within the specified ranges. Check the power supply voltage and ensure that it is within the recommended range. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS30013-M033QFNR Overview

Use the download button to access the TS30013-M033QFNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS300, or try a keyword search, such as Switching Regulator or Controllers
