For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note AN12071 from Semtech Corporation. This includes using a 4-layer PCB with a solid ground plane, placing the device near the center of the board, and using thermal vias to dissipate heat. Additionally, ensure that the device is soldered correctly and that the thermal pad is connected to a solid ground plane.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider the thermal management guidelines mentioned earlier, and ensure that the device is properly soldered and mounted. It's also recommended to perform thorough testing and validation of the design across the entire operating temperature range.
The TS30041-M015QFNR has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device. Store the device in an anti-static bag or container, and avoid exposing it to extreme temperatures or humidity.
The TS30041-M015QFNR is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Review the device's failure modes, fault tolerance, and error detection capabilities. Additionally, consider the device's compliance with relevant industry standards, such as IEC 61508 or ISO 26262, and perform thorough testing and validation to ensure the device meets the required safety and reliability standards.
Common failure modes for the TS30041-M015QFNR include overheating, electrical overstress, and manufacturing defects. To mitigate these failure modes, ensure proper thermal management, follow the recommended operating conditions, and implement adequate protection circuits. Additionally, perform thorough testing and inspection during the manufacturing process to detect any defects or anomalies.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS30041-M015QFNR Overview

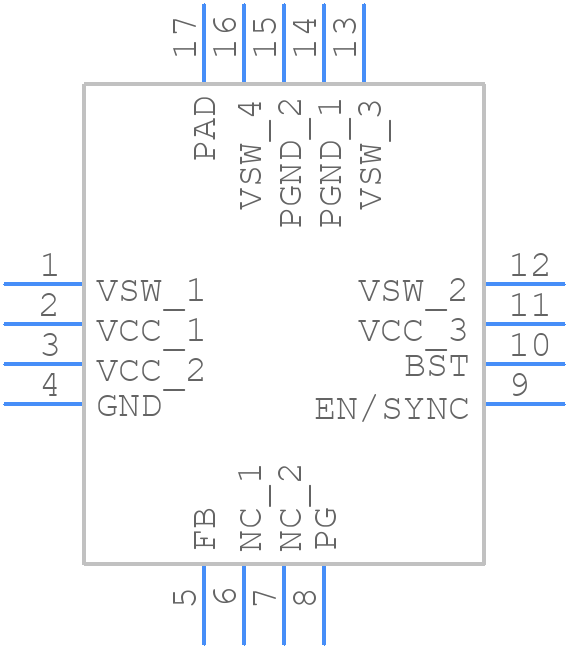

Use the download button to access the TS30041-M015QFNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS300,
or try a keyword search, such as Switching Regulator or Controllers
