TS30042-M050QFNR footprint, schematic symbol and 3D model by SEMTECH

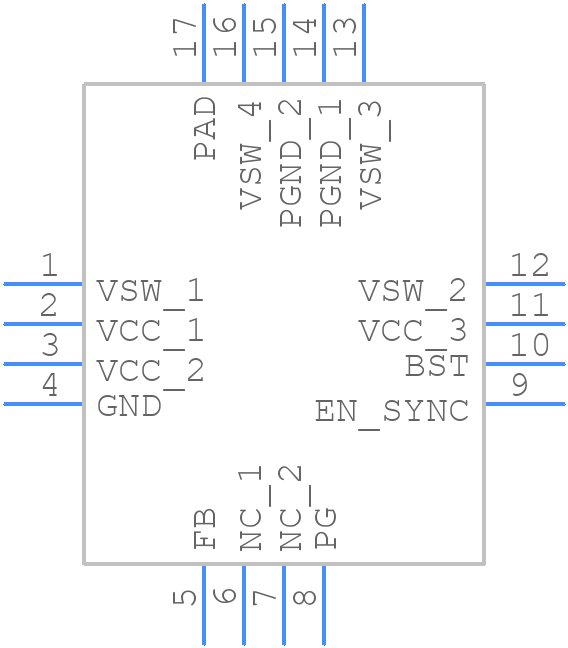

Symbol

click to zoom

PCB Footprints

TS30042-M050QFNR - SEMTECH PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16

click to zoom

3D Models

TS30042-M050QFNR - SEMTECH - 3D model - Quad Flat No-Lead - QFN16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TS30042-M050QFNR
Part Number TS30042-M050QFNR
Manufacturer SEMTECH
Pin Count 17
Part Category Undefined or Miscellaneous
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN16
Released Date Nov 23, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TS30042-M050QFNR Details

Manufacturer Part Number:
TS30042-M050QFNR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-16
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Semtech Corporation
YTEOL:
8
Additional Feature:
ALSO REQUIRE PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
40 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
1100 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
3 mm

TS30042-M050QFNR Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
The TS30042-M050QFNR requires a single 5V power supply. Ensure the power supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors. Bias the input pins with a 1kΩ resistor to VCC or GND.
The TS30042-M050QFNR supports data rates up to 3.2 Gbps. However, the actual data rate achieved may depend on the quality of the signal, PCB layout, and system design.
Use an oscilloscope to check the signal integrity and eye diagram. Verify the power supply and biasing. Check for signal reflections, crosstalk, and electromagnetic interference (EMI). Consult the datasheet and application notes for troubleshooting guidelines.
The TS30042-M050QFNR is designed for SATA III and PCIe Gen3 applications. It may be compatible with other transmission standards, but additional testing and validation may be required to ensure compatibility and performance.

Trust Checks

Community Provided

System Verified

Community Approved

TS30042-M050QFNR Overview

Use the download button to access the TS30042-M050QFNR schematic symbol, PCB footprint, and 3D model.
