TS339ID - STMicroelectronics

Description: Micropower quad CMOS voltage comparator

Download TS339ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

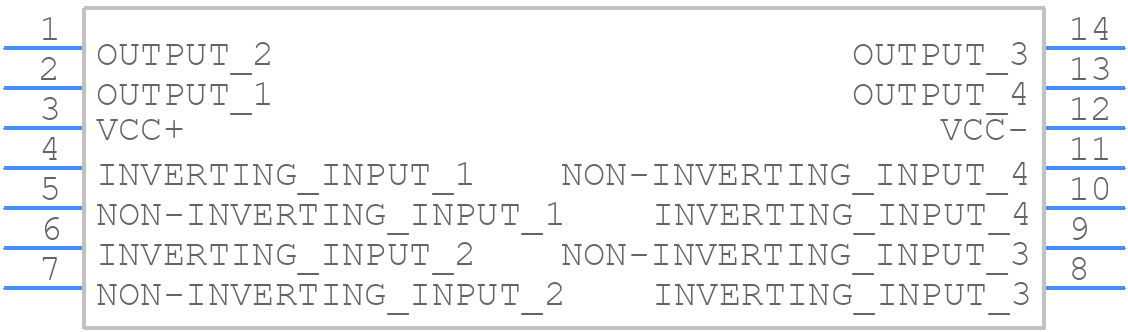

TS339ID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS339ID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-14 package outline
click to zoom
3D Models
TS339ID - STMicroelectronics - 3D model - Small Outline Packages - SO-14 package outline
click to zoom

TS339ID Details

  • Manufacturer Part Number:

    TS339ID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1500 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

TS339ID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and grounding to minimize EMI and noise.
  • The TS339ID requires a specific biasing scheme to operate optimally. The recommended biasing scheme is described in the datasheet, and it's essential to follow the recommended voltage and current levels to ensure proper operation.
  • The TS339ID is rated for operation from -40°C to 125°C, but it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to consult the datasheet for specific temperature-related performance characteristics.
  • Yes, the TS339ID is qualified for use in high-reliability and automotive applications. STMicroelectronics provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2352, which covers common issues and their solutions. Additionally, the STMicroelectronics support team can provide further assistance and guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS339ID Overview

Use the download button to access the TS339ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS339, or try a keyword search, such as Comparators
