TS556CD - STMicroelectronics

Description: Low-power dual CMOS timer

Download TS556CD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

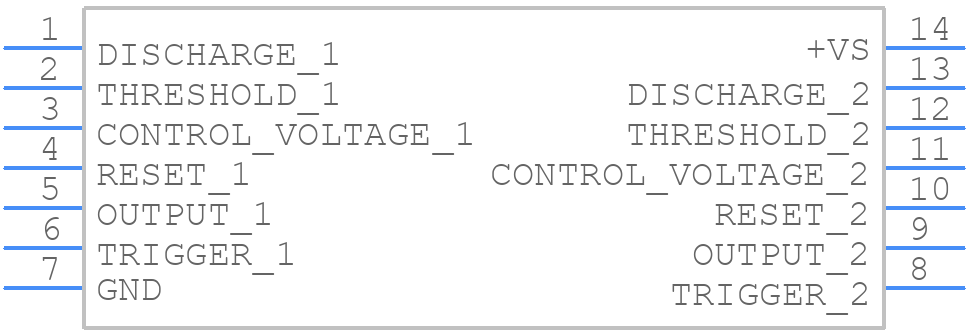

TS556CD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS556CD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 14
click to zoom
3D Models
TS556CD - STMicroelectronics - 3D model - Small Outline Packages - SO 14
click to zoom

TS556CD Details

  • Manufacturer Part Number:

    TS556CD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 2V, 5V AND 12V NOMINAL SUPPLY

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Frequency-Max:

    2 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

TS556CD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended layout and routing guide in their application note AN-2451, which includes guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • The output capacitor selection depends on the output voltage, current, and ripple requirements. A general rule of thumb is to choose a capacitor with a capacitance value between 10uF to 100uF, and a voltage rating at least 1.5 times the output voltage. Additionally, consider the ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) of the capacitor to ensure it can handle the output current and frequency.
  • Although the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V to 13V to ensure reliable operation and prevent damage to the device. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even device failure.
  • OVP can be implemented using an external voltage supervisor IC, such as the STMicroelectronics STM6627, which monitors the output voltage and shuts down the TS556CD if it exceeds a predetermined threshold. Alternatively, a simple voltage divider and comparator circuit can be used to detect overvoltage conditions and trigger a shutdown signal.
  • The thermal derating curve for the TS556CD is not explicitly provided in the datasheet. However, STMicroelectronics recommends following the general thermal derating guidelines for their DC-DC converters, which typically involve reducing the output current by 1-2% per degree Celsius above the maximum operating temperature (typically 125°C).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS556CD Overview

Use the download button to access the TS556CD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS556, or try a keyword search, such as Analog Waveform Generation Functions
