TS556ID - STMicroelectronics

Description: Low-power dual CMOS timer

Download TS556ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

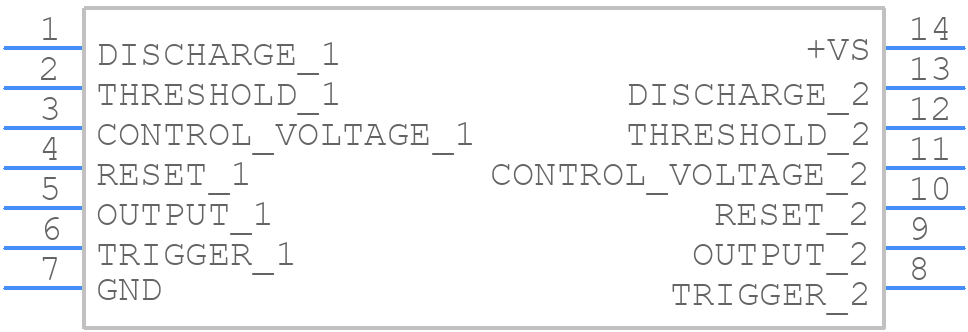

Symbol
TS556ID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS556ID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 14
click to zoom
3D Models
TS556ID - STMicroelectronics - 3D model - Small Outline Packages - SO 14
click to zoom

TS556ID Details

  • Manufacturer Part Number:

    TS556ID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    IT CAN ALSO OPERATE FROM A 2V, 5V AND 12V NOMINAL SUPPLY

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    2 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

TS556ID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended layout and routing guide in their application note AN2352, which includes guidelines for PCB design, component placement, and routing to minimize EMI and noise.
  • The TS556ID requires a stable power supply with adequate decoupling capacitors. A minimum of 10uF ceramic capacitor should be placed close to the VCC pin, and additional capacitors can be added depending on the specific application. Refer to the datasheet for more information on power supply requirements.
  • The TS556ID is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. Refer to the datasheet for more information on temperature ratings.
  • STMicroelectronics provides a troubleshooting guide in their application note AN2352, which includes steps to identify and resolve common issues with the TS556ID, such as oscillations or instability. Additionally, engineers can use simulation tools and Spice models to simulate the circuit and identify potential issues.
  • STMicroelectronics provides guidelines for testing and measuring the TS556ID in their application note AN2352, which includes information on test equipment, measurement techniques, and safety precautions. Engineers should also refer to the datasheet for specific testing and measurement requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS556ID Overview

Use the download button to access the TS556ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS556, or try a keyword search, such as Analog Waveform Generation Functions

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
