TS78L15CS - Taiwan Semiconductor

Description: TAIWAN SEMICONDUCTOR - TS78L15CS - IC, V REG +15V, SMD, 78L15, SOIC8

Download TS78L15CS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

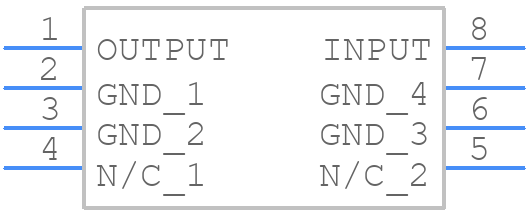

TS78L15CS - Taiwan Semiconductor - PCB symbol
click to zoom
PCB Footprints
TS78L15CS - Taiwan Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8
click to zoom
3D Models
TS78L15CS - Taiwan Semiconductor - 3D model - Small Outline Packages - SOP-8
click to zoom

TS78L15CS Details

  • Manufacturer Part Number:

    TS78L15CS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Taiwan Semiconductor

  • YTEOL:

    6

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Line Regulation-Max:

    0.3%

  • Load Regulation-Max:

    0.15%

  • Moisture Sensitivity Level:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

TS78L15CS Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2oz copper thickness is recommended for the PCB. Additionally, it is recommended to place vias under the device to improve heat dissipation.
  • To ensure stability and prevent oscillation in the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the output pin of the device. Additionally, it is recommended to use a low-ESR capacitor and to avoid using ceramic capacitors with high ESL.
  • The maximum allowed input voltage ripple for the TS78L15CS is 10% of the input voltage. Exceeding this limit may affect the device's performance and stability.
  • The TS78L15CS is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage according to the temperature derating curve provided in the datasheet. Additionally, it is recommended to ensure good thermal design and heat dissipation to prevent overheating.
  • To protect the device from input voltage surges and spikes, it is recommended to use a TVS diode or a transient voltage suppressor at the input of the device. Additionally, it is recommended to use a fuse or a current limiter to prevent overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS78L15CS Overview

Use the download button to access the TS78L15CS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS78L, or try a keyword search, such as Linear Regulator ICs
