TS8441L - Tagore Technology

Description: IC RF SWITCH SP4T 4GHZ 32-VFQFN

Download TS8441L Model
Schematic

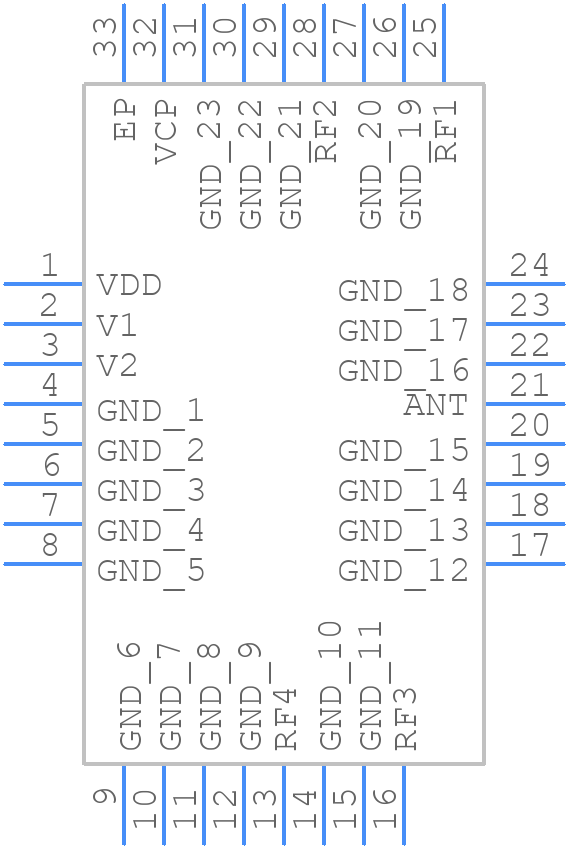

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS8441L - Tagore Technology PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Pin 4×4×0.8mm QFN_2025
click to zoom
3D Models
TS8441L - Tagore Technology  - 3D model - Quad Flat No-Lead - 32 Pin 4×4×0.8mm QFN_2025
click to zoom

TS8441L Details

  • Manufacturer Part Number:

    TS8441L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-32

  • Manufacturer:

    Tagore Technology Inc

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    43 dBm

  • Insertion Loss-Max:

    0.45 dB

  • Isolation-Min:

    34 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • On Time-Nom:

    0.8 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    0.2 mA

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    1.04

TS8441L Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Use a decoupling capacitor of at least 10uF between VCC and GND, and ensure that the device is operated within the recommended voltage range. Also, avoid thermal shocks and ensure proper thermal management.
  • The maximum allowable voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
  • Check the power supply voltage, ensure that the enable pin is properly configured, and verify that the input voltage is within the recommended range. Also, check for any short circuits or damage to the device.
  • Use a TVS diode or a transient voltage suppressor with a standoff voltage of 5.5V or less to protect the device from electrostatic discharge.
