TS883IQ2T - STMicroelectronics

Description: Rail-to-rail 0.9 V open-drain output, nanopower comparators

Download TS883IQ2T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

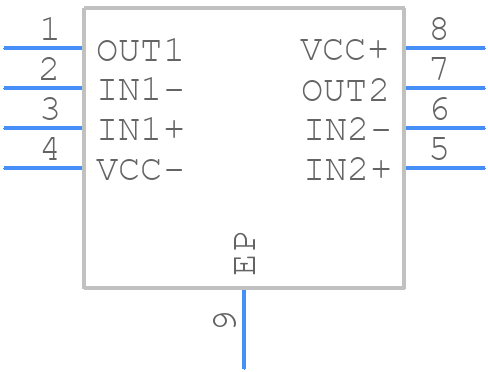

TS883IQ2T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS883IQ2T - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - TS883IQ2T
click to zoom
3D Models
TS883IQ2T - STMicroelectronics - 3D model - Small Outline No-lead - TS883IQ2T
click to zoom

TS883IQ2T Details

  • Manufacturer Part Number:

    TS883IQ2T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    2 mm

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.04,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    20000 ns

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max:

    0.00126 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2 mm

TS883IQ2T Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TS883IQ2T is a highly configurable device, and the configuration depends on the specific application requirements. STMicroelectronics provides a software development kit (SDK) and a user manual that includes examples and guidelines for configuring the device for various applications.
  • The TS883IQ2T is rated for operation from -40°C to 125°C, but the actual operating temperature range may be limited by the specific application and the thermal management design. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • STMicroelectronics provides a troubleshooting guide in the application note AN5275, which includes common issues, symptoms, and solutions. Additionally, the device has built-in diagnostic features, such as error flags and status registers, that can help identify and debug issues.
  • The TS883IQ2T has specific power sequencing requirements to ensure proper operation and prevent damage. The recommended power sequencing is described in the datasheet and application notes, and it's essential to follow these guidelines to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS883IQ2T Overview

Use the download button to access the TS883IQ2T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS883, or try a keyword search, such as Comparators

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
