TS884IDT - STMicroelectronics

Description: Rail-to-rail 1.1 V nanopower, push-pull quad comparators

Download TS884IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

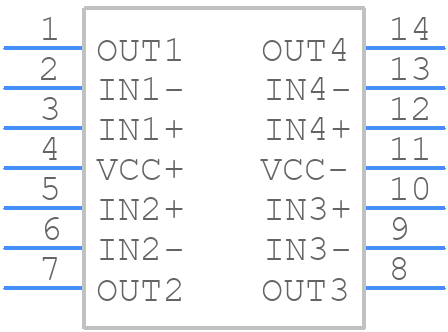

Symbol
TS884IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS884IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 14
click to zoom
3D Models
TS884IDT - STMicroelectronics - 3D model - Small Outline Packages - SO 14
click to zoom

TS884IDT Details

  • Manufacturer Part Number:

    TS884IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.000099 µA

  • Bias Current-Max (IIB) @25C:

    0.00001 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Response Time-Nom:

    5500 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TS884IDT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The TS884IDT is a highly configurable device, and the configuration depends on the specific application requirements. STMicroelectronics provides a software development kit (SDK) and a user manual that guides the user through the configuration process, including setting up the device registers, configuring the analog-to-digital converters, and programming the device's firmware.
  • The TS884IDT is specified to operate from -40°C to 125°C, but the actual operating temperature range may vary depending on the specific application and the device's power dissipation. It's recommended to consult the datasheet and the application note AN2352 for more information on thermal management and derating.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2352, which includes a list of common issues, their causes, and recommended solutions. Additionally, the user can use the device's built-in diagnostic features, such as the error flags and the debug interface, to identify and debug issues.
  • The TS884IDT is a digital-to-analog converter (DAC) and analog-to-digital converter (ADC) device that can be interfaced with a wide range of microcontrollers and processors. The compatibility depends on the specific interface requirements, such as the communication protocol, data rate, and voltage levels. It's recommended to consult the datasheet and the microcontroller or processor's documentation to ensure compatibility.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS884IDT Overview

Use the download button to access the TS884IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS884, or try a keyword search, such as Comparators
