TS921IPT - STMicroelectronics

Description: Rail-to-rail high output current single operational amplifier

Download TS921IPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

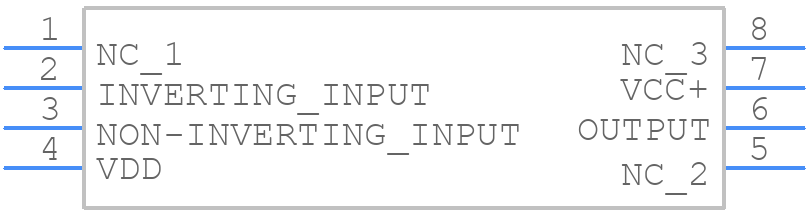

TS921IPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

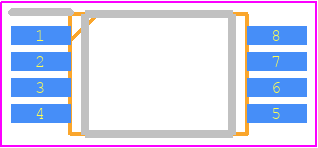

TS921IPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TS921IPT
click to zoom
3D Models
TS921IPT - STMicroelectronics - 3D model - Small Outline Packages - TS921IPT
click to zoom

TS921IPT Details

  • Manufacturer Part Number:

    TS921IPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.1 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    0.7 V/us

  • Slew Rate-Nom:

    1.3 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    14 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    16000

  • Wideband:

    NO

  • Width:

    3 mm

TS921IPT Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal shutdown or warning mechanisms if necessary.
  • Using a lower input voltage than the recommended 12V may result in reduced output current capability, increased dropout voltage, and decreased efficiency. Using a higher input voltage may result in increased power dissipation, reduced reliability, and potential damage to the device. It's essential to follow the recommended input voltage range to ensure optimal performance and reliability.
  • To optimize output voltage accuracy and stability, use a high-quality output capacitor with low ESR, ensure a stable input voltage, and minimize noise and ripple on the input and output lines. Additionally, consider using a voltage reference IC or a precision resistor network to improve output voltage accuracy.
  • To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use a shielded enclosure, and implement filtering and shielding on the input and output lines. Additionally, consider using a common-mode choke or ferrite bead to reduce common-mode noise and ensure compliance with relevant EMI and EMC standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS921IPT Overview

Use the download button to access the TS921IPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS921, or try a keyword search, such as Operational Amplifiers
