TS952IPT - STMicroelectronics

Description: STMicroelectronics TS952IPT, Dual Low Power Op Amp, 3MHz Rail-Rail, 2.7 → 12 V, 8-Pin TSSOP

Download TS952IPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

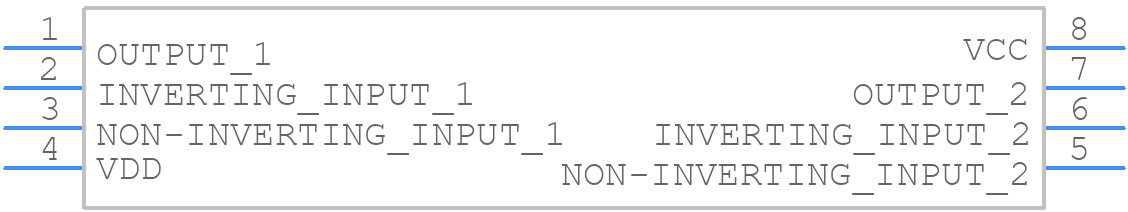

TS952IPT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS952IPT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . TSSOP8 – Mechanical data-
click to zoom
3D Models
TS952IPT - STMicroelectronics - 3D model - Small Outline Packages - . TSSOP8 – Mechanical data-
click to zoom

TS952IPT Details

  • Manufacturer Part Number:

    TS952IPT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    2.8 mA

  • Supply Voltage Limit-Max:

    14 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3 mm

TS952IPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS952IPT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
  • The TS952IPT requires a single 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the analog power supply is powered up before the digital power supply.
  • The recommended clocking scheme for the TS952IPT is to use a single-ended clock input, and to ensure that the clock signal is clean and has minimal jitter. To minimize clock jitter, it's recommended to use a clock source with a low jitter specification, and to use a clock buffer or repeater to regenerate the clock signal if necessary.
  • The TS952IPT has several configuration options that can be set through the SPI interface. To configure the device for optimal performance, it's recommended to consult the datasheet and application notes, and to use the STMicroelectronics evaluation board as a reference design. Additionally, it's recommended to perform thorough testing and characterization of the device in the specific application to ensure optimal performance.
  • The TS952IPT has a maximum junction temperature of 150°C, and it's recommended to ensure that the device operates within a temperature range of -40°C to 85°C. To ensure proper thermal management, it's recommended to use a heat sink or thermal pad, and to ensure good airflow around the device. Additionally, it's recommended to monitor the device temperature and adjust the thermal design as necessary.
