TS954IDT - STMicroelectronics

Description: TS954IDT, Quad Operational Amplifier 3MHz CMOS, Rail-Rail, 3 V, 5 V, 9 V, 14-Pin SO

Download TS954IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

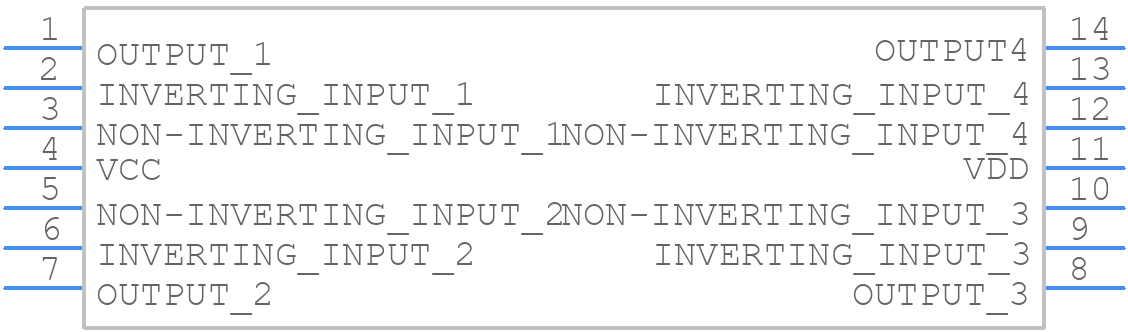

Symbol
TS954IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS954IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TS954IDT
click to zoom
3D Models
TS954IDT - STMicroelectronics - 3D model - Small Outline Packages - TS954IDT
click to zoom

TS954IDT Details

  • Manufacturer Part Number:

    TS954IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOP-14

  • Pin Count:

    14

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.52

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.1 µA

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    14

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    5.6 mA

  • Supply Voltage Limit-Max:

    14 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

TS954IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS954IDT involves keeping the input and output tracks separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the HDMI output and to keep the HDMI connector away from other noisy signals.
  • To ensure proper configuration, refer to the TS954IDT datasheet and application notes, and use the STMicroelectronics-provided configuration tool or scripts to generate the necessary configuration files. Additionally, consult with STMicroelectronics' technical support or a qualified engineer with experience in HDMI design.
  • The TS954IDT has a maximum junction temperature of 125°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and follow proper PCB thermal design guidelines. Additionally, consider using thermal interface materials and thermal vias to improve heat dissipation.
  • To troubleshoot HDMI signal integrity issues, use an oscilloscope to measure the HDMI signal quality, check for proper termination and impedance matching, and verify that the TS954IDT is properly configured. Additionally, consult the TS954IDT datasheet and application notes, and seek technical support from STMicroelectronics or a qualified engineer with experience in HDMI design.
  • The TS954IDT requires a specific power sequencing order to ensure proper operation. Refer to the datasheet and application notes for the recommended power-up and power-down sequences, and ensure that the power supply rails are properly sequenced and decoupled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS954IDT Overview

Use the download button to access the TS954IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS954, or try a keyword search, such as Operational Amplifiers
