TSA5511 - NXP

TSA5511 Details

• Manufacturer Part Number:

  TSA5511

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

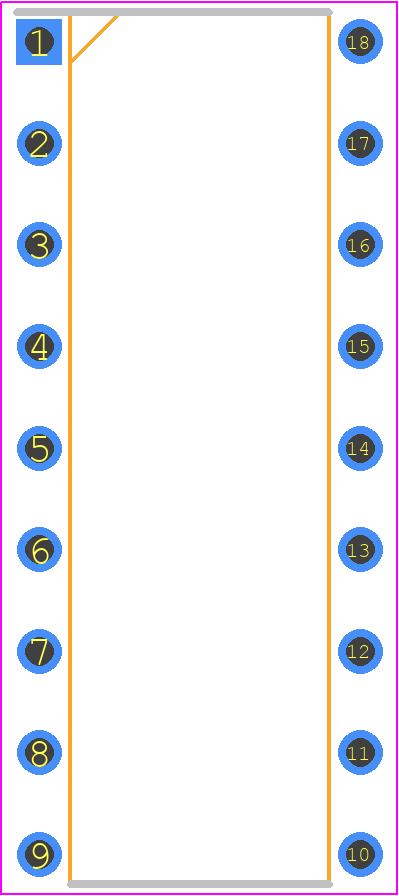

• Package Description:

  0.300 INCH, PLASTIC, SOT-102, DIP-18

• Pin Count:

  18

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Additional Feature:

  ADDITIONAL DIVIDE BY 8 PRESCALER

• Analog IC - Other Type:

  PLL FREQUENCY SYNTHESIZER

• JESD-30 Code:

  R-PDIP-T18

• Length:

  21.6 mm

• Number of Functions:

  1

• Number of Terminals:

  18

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -10 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.7 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
