Technical Content
Part Image

TSC2011IYST - STMicroelectronics

Description: High voltage, precision, bidirectional current sense amplifiers

Download TSC2011IYST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

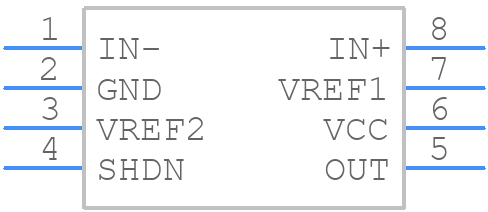

Symbol
TSC2011IYST - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSC2011IYST - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MiniSO 8
click to zoom
3D Models
TSC2011IYST - STMicroelectronics - 3D model - Small Outline Packages - MiniSO 8
click to zoom

TSC2011IYST Details

  • Manufacturer Part Number:

    TSC2011IYST

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.6 µA

  • Bias Current-Max (IIB) @25C:

    0.6 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1100 µV

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    4.1 V/us

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    2.4 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Wideband:

    NO

  • Width:

    3 mm

TSC2011IYST Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the TSC2011IYST can be found in the STMicroelectronics application note AN4071, which provides guidelines for PCB design and layout to ensure optimal performance and minimize noise.
  • The TSC2011IYST touch screen controller requires calibration to ensure accurate touch detection. The calibration process involves adjusting the sensitivity and threshold settings to match the specific touch screen panel and environmental conditions. STMicroelectronics provides a calibration tool and guidelines in the device's user manual.
  • The maximum operating frequency of the TSC2011IYST is 10 MHz, but it can be adjusted to lower frequencies depending on the specific application requirements. It's recommended to consult the datasheet and application notes for more information on frequency settings and trade-offs.
  • The TSC2011IYST has built-in noise filtering and suppression capabilities, including a noise canceller and a shield driver. Additionally, the device can be configured to use various noise reduction techniques, such as frequency hopping and spread spectrum. It's recommended to consult the datasheet and application notes for more information on noise handling and mitigation strategies.
  • Yes, the TSC2011IYST can be used with capacitive touch screens, including mutual capacitance and self-capacitance touch screens. However, the device's configuration and settings may need to be adjusted to accommodate the specific touch screen technology and requirements. It's recommended to consult the datasheet and application notes for more information on using the TSC2011IYST with capacitive touch screens.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2011IYST Overview

Use the download button to access the TSC2011IYST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC20, or try a keyword search, such as Operational Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
