TSC2012HYDT - STMicroelectronics

Description: High temperature, high voltage, precision, bidirectional current sense amplifiers

Download TSC2012HYDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

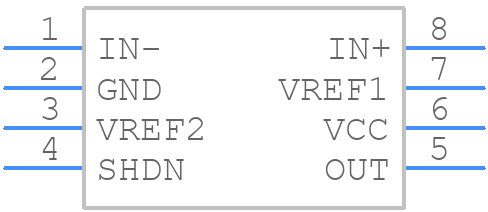

TSC2012HYDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSC2012HYDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 package outline
click to zoom
3D Models
TSC2012HYDT - STMicroelectronics - 3D model - Small Outline Packages - SO8 package outline
click to zoom

TSC2012HYDT Details

  • Manufacturer Part Number:

    TSC2012HYDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    120 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1300 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2.6 V/us

  • Slew Rate-Nom:

    5.2 V/us

  • Supply Current-Max:

    2.4 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3.9 mm

TSC2012HYDT Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the TSC2012HYDT can be found in the application note AN4071 from STMicroelectronics, which provides guidelines for PCB design and layout to ensure optimal performance and minimize noise.
  • The TSC2012HYDT does not require calibration. It is a digital touch sensor controller that uses a self-calibrating algorithm to adapt to the sensor capacitance and environmental changes. However, the sensor electrodes may need to be tuned for optimal performance, which can be done through the device's registers.
  • The TSC2012HYDT can support up to 12 touch keys, depending on the configuration and the type of sensors used. The device has 12 channels, each of which can be connected to a touch sensor or a slider.
  • The TSC2012HYDT is specifically designed for capacitive touch sensors, and it is not recommended to use it with other types of sensors. However, STMicroelectronics offers other devices that can be used with resistive touch sensors, inductive sensors, or other types of sensors.
  • The power consumption of the TSC2012HYDT depends on the operating mode and the frequency of operation. In active mode, the typical power consumption is around 10mA, while in sleep mode, it is around 10uA. The device also has a low-power mode that can reduce power consumption to around 1uA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC2012HYDT Overview

Use the download button to access the TSC2012HYDT schematic symbol, PCB footprint, and 3D model.
