TSC426MJA/883B - Analog Devices

Description: Low-Side Gate Driver IC Inverting 8-CERDIP

Download TSC426MJA/883B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

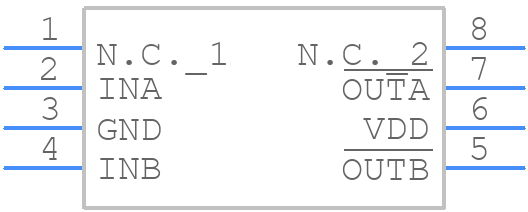

Symbol
TSC426MJA/883B - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TSC426MJA/883B - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J8-2
click to zoom

TSC426MJA/883B Details

  • Manufacturer Part Number:

    TSC426MJA/883B

  • Brand Name:

    Analog Devices Inc

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-CERDIP-300_MIL

  • Package Description:

    0.300 INCH, CERAMIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-CERDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-CDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    10.03 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.12 µs

  • Width:

    7.62 mm

TSC426MJA/883B Frequently Asked Questions (FAQs)

  • A good PCB layout for the TSC426MJA/883B should minimize noise and parasitic inductance. Keep the input and output traces short and separate, and use a solid ground plane to reduce noise. Also, place the device close to the power supply and use decoupling capacitors to filter out noise.
  • To ensure the TSC426MJA/883B operates within its specified temperature range, provide adequate heat sinking, avoid overheating, and keep the device away from high-temperature sources. Also, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • Exceeding the maximum ratings of the TSC426MJA/883B can lead to device damage, reduced reliability, and even failure. It's essential to operate the device within its specified voltage, current, and temperature ratings to ensure reliable operation and prevent damage.
  • To troubleshoot issues with the TSC426MJA/883B, start by checking the power supply and input signals. Verify that the device is properly connected and configured. Use oscilloscopes and logic analyzers to debug the circuit and identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The TSC426MJA/883B has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats to prevent static damage. Also, ensure that the device is properly grounded during handling and testing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSC426MJA/883B Overview

Use the download button to access the TSC426MJA/883B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSC42, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
