TSH82IDT - STMicroelectronics

Description: Wide-band rail-to-rail operational amplifiers with standby function

Download TSH82IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

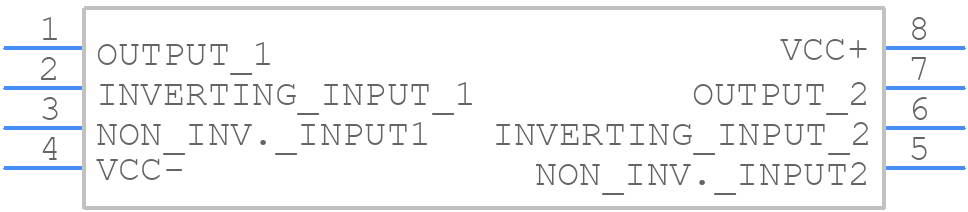

Symbol
TSH82IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSH82IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8 package outline
click to zoom
3D Models
TSH82IDT - STMicroelectronics - 3D model - Small Outline Packages - SO8 package outline
click to zoom

TSH82IDT Details

  • Manufacturer Part Number:

    TSH82IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TSH82IDT Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal conduction to the PCB and heat sink.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, depending on the specific application requirements, to ensure optimal performance and stability.
  • To troubleshoot oscillations or instability issues, check the PCB layout for proper decoupling, ensure that the input and output capacitors are properly sized and placed, and verify that the device is operated within its recommended operating conditions.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF, depending on the specific application requirements, to ensure optimal performance and stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSH82IDT Overview

Use the download button to access the TSH82IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSH82, or try a keyword search, such as Operational Amplifiers
