TSJ31 - KNITTER-SWITCH

Description: Tactile Switch, SPDT-NO 20 mA

Download TSJ31 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSJ31 - KNITTER-SWITCH - PCB symbol
click to zoom
PCB Footprints

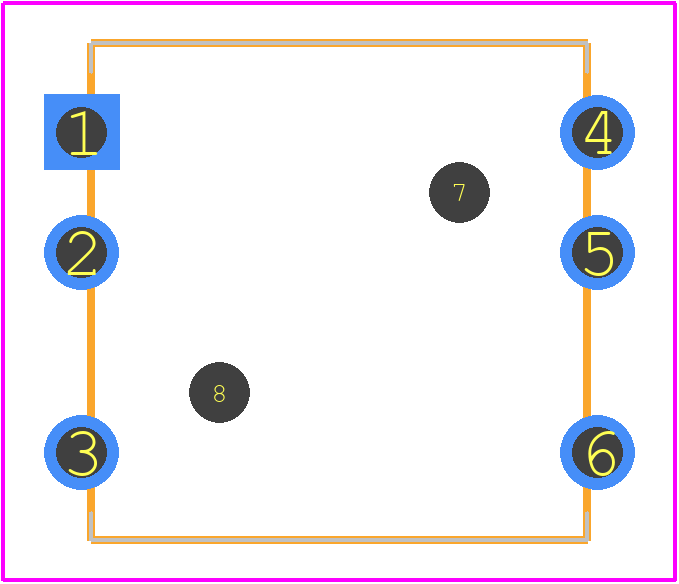

TSJ31 - KNITTER-SWITCH PCB footprint - Other - Other - TSJ31-2
click to zoom
3D Models
TSJ31 - KNITTER-SWITCH - 3D model - Other - TSJ31-2
click to zoom

TSJ31 Details

  • Manufacturer Part Number:

    TSJ31

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    knitter-switch

  • Actuator Length:

    0.169 inch

  • Actuator Type:

    PUSHBUTTON

  • Body Breadth:

    12.3952 mm

  • Body Height:

    5.6896 mm

  • Body Length or Diameter:

    12.3952 mm

  • Center Contact Material:

    PHOSPHOR BRONZE

  • Center Contact Plating:

    SILVER

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    0.02A@15VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    15 V

  • Dielectric Withstand Volts:

    100VAC V

  • End Contact Material:

    PHOSPHOR BRONZE

  • End Contact Plating:

    SILVER

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Hole Count:

    6

  • Surface Mount:

    NO

  • Switch Action:

    VERTICAL

  • Terminal Length:

    0.142 inch

  • Termination Type:

    SOLDER

TSJ31 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the TSJ31 is -40°C to 85°C, although it can withstand storage temperatures from -55°C to 125°C.
  • The TSJ31 has built-in ESD protection, which can withstand up to 8kV contact discharge and 15kV air discharge, meeting the IEC 61000-4-2 standard.
  • The typical bounce time for the TSJ31 is around 5ms, although this can vary depending on the specific application and operating conditions.
  • Yes, the TSJ31 is designed to withstand high-vibration environments, with a vibration resistance of 10G to 2000Hz, making it suitable for use in industrial and transportation applications.
  • Yes, the TSJ31 meets the requirements of the automotive industry, including the ISO 7637-1 standard for electrical disturbances, and is suitable for use in automotive applications.
