TSL0709RA-101KR66-PF - TDK

Description: TDK 100 µH ±10% Leaded Inductor, Max SRF:5MHz, Q:20, 660mA Idc, 330mΩ Rdc

Download TSL0709RA-101KR66-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL0709RA-101KR66-PF - TDK - PCB symbol
click to zoom

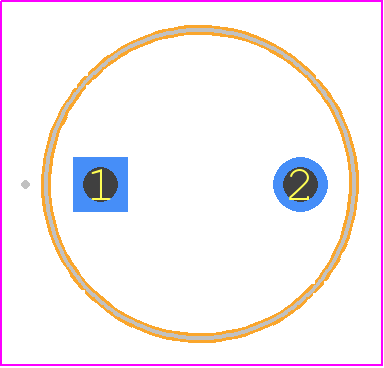

PCB Footprints
TSL0709RA-101KR66-PF - TDK PCB footprint - Other - Other - TSL0709
click to zoom
3D Models
TSL0709RA-101KR66-PF - TDK - 3D model - Other - TSL0709
click to zoom

TSL0709RA-101KR66-PF Details

  • Manufacturer Part Number:

    TSL0709RA-101KR66-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED , ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • DC Resistance:

    0.33 Ω

  • Inductance-Nom (L):

    100 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    0.67 A

  • Self Resonance Frequency:

    5 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 0.796 MHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

TSL0709RA-101KR66-PF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TSL0709RA-101KR66-PF can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
  • During reflow soldering, it's crucial to follow the recommended temperature profile to prevent damage to the component. The maximum temperature rating for the TSL0709RA-101KR66-PF is 260°C. Ensure that the peak temperature is not exceeded, and the temperature ramp-up and cool-down rates are within the recommended specifications.
  • The maximum operating temperature range for the TSL0709RA-101KR66-PF is -55°C to 125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at extreme temperatures for an extended period.
  • The TSL0709RA-101KR66-PF is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with TDK Corporation's technical support team to determine the component's suitability for your specific use case.
  • To prevent moisture absorption, store the TSL0709RA-101KR66-PF in a dry, cool place, away from direct sunlight. Use airtight packaging or desiccant packets to maintain a low humidity environment. Avoid exposing the component to temperatures above 30°C or humidity above 60% during storage.
