TSL0709RA-220K1R3-PF - TDK

Description: TDK 22 µH ±10% Leaded Inductor, Max SRF:12MHz, Q:20, 1.4A Idc, 86mΩ Rdc

Download TSL0709RA-220K1R3-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL0709RA-220K1R3-PF - TDK - PCB symbol
click to zoom

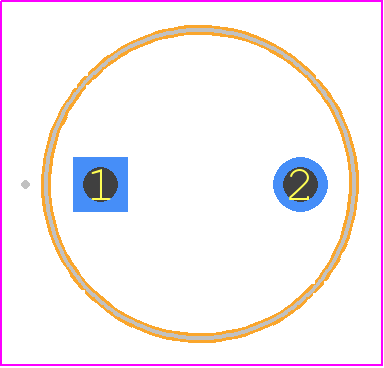

PCB Footprints
TSL0709RA-220K1R3-PF - TDK PCB footprint - Other - Other - TSL0709
click to zoom
3D Models
TSL0709RA-220K1R3-PF - TDK - 3D model - Other - TSL0709
click to zoom

TSL0709RA-220K1R3-PF Details

  • Manufacturer Part Number:

    TSL0709RA-220K1R3-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED , ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Non-Flammable

  • DC Resistance:

    0.086 Ω

  • Inductance-Nom (L):

    22 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.65 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Length:

    9.5 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    1.3 A

  • Self Resonance Frequency:

    12 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 2.52 MHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

TSL0709RA-220K1R3-PF Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the TSL0709RA-220K1R3-PF is a rectangular pad with dimensions of 2.5mm x 1.6mm, with a 0.5mm hole in the center for the inductor's terminal.
  • The TSL0709RA-220K1R3-PF has a maximum operating temperature of 125°C. Ensure good airflow around the inductor, and consider using a heat sink or thermal pad if the inductor will be operating near its maximum current rating.
  • The TSL0709RA-220K1R3-PF has a saturation current rating of 2.5A. Exceeding this current may cause the inductor to saturate, reducing its inductance and potentially causing system instability.
  • Yes, the TSL0709RA-220K1R3-PF is suitable for high-frequency applications up to 1MHz. However, be aware that the inductor's impedance will increase with frequency, which may affect system performance.
  • Use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the PCB pads. Ensure the inductor is properly aligned with the PCB pads before soldering.
