TSL0808RA-680K1R0-PF - TDK

Description: TDK 68 µH ±10% Leaded Inductor, Max SRF:5.4MHz, Q:20, 1.1A Idc, 160mΩ Rdc

Download TSL0808RA-680K1R0-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL0808RA-680K1R0-PF - TDK - PCB symbol
click to zoom
PCB Footprints

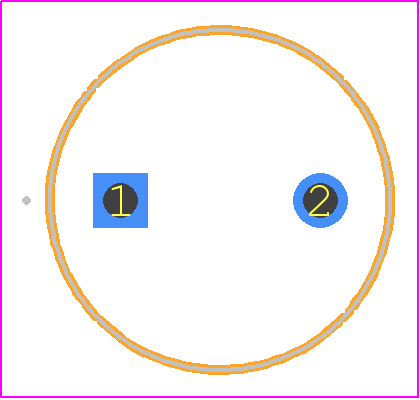

TSL0808RA-680K1R0-PF - TDK PCB footprint - Other - Other - TSL0808
click to zoom
3D Models
TSL0808RA-680K1R0-PF - TDK - 3D model - Other - TSL0808
click to zoom

TSL0808RA-680K1R0-PF Details

  • Manufacturer Part Number:

    TSL0808RA-680K1R0-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Non-Flammable

  • DC Resistance:

    0.16 Ω

  • Inductance-Nom (L):

    68 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.62 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Length:

    8.3 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    1.1 A

  • Self Resonance Frequency:

    5.4 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 2.52 MHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

TSL0808RA-680K1R0-PF Frequently Asked Questions (FAQs)

  • The recommended land pattern for the TSL0808RA-680K1R0-PF can be found in the TDK Corporation's application note or on their website. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
  • Proper thermal management is crucial for the TSL0808RA-680K1R0-PF. Ensure good airflow around the component, and consider using a heat sink or thermal interface material if necessary. Follow the thermal design guidelines provided by TDK Corporation or consult with their application engineers for specific guidance.
  • The maximum operating temperature range for the TSL0808RA-680K1R0-PF is typically specified in the datasheet. However, it's essential to note that the component's performance and lifespan may be affected by extreme temperatures. Consult the datasheet or contact TDK Corporation's support team for specific temperature-related guidance.
  • The TSL0808RA-680K1R0-PF is designed to withstand certain levels of vibration. However, it's crucial to evaluate the component's performance in your specific application. Consult the datasheet or contact TDK Corporation's support team to determine the component's suitability for your high-vibration environment.
  • To ensure the reliability and quality of the TSL0808RA-680K1R0-PF, follow proper storage and handling procedures, and ensure that the component is soldered correctly. Additionally, consider implementing a robust testing and inspection process to detect any potential defects or issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSL0808RA-680K1R0-PF Overview

Use the download button to access the TSL0808RA-680K1R0-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL08, or try a keyword search, such as Fixed Inductors
