The recommended land pattern for the TSL1112RA-222JR33-PF can be found in the TDK Corporation's application note 'Recommended Mounting and Land Pattern for Chip Inductors' (document number: AP-14001).
The thermal derating of the TSL1112RA-222JR33-PF is specified in the datasheet. To handle thermal derating, ensure that the operating temperature is within the specified range, and consider the temperature coefficient of inductance (TCI) when designing the circuit. Additionally, consider using thermal management techniques such as heat sinks or thermal vias to reduce the operating temperature.
The self-resonant frequency (SRF) of the TSL1112RA-222JR33-PF is not explicitly specified in the datasheet. However, it can be estimated using the inductor's inductance value and the parasitic capacitance. As a rough estimate, the SRF can be calculated using the formula: SRF ≈ 1 / (2 * π * √(L * C)), where L is the inductance value and C is the parasitic capacitance.
The TSL1112RA-222JR33-PF is a general-purpose inductor suitable for frequencies up to several hundred kHz. However, for high-frequency applications (e.g., above 1 MHz), it's recommended to consider inductors specifically designed for high-frequency use, such as those with lower parasitic capacitance and optimized for high-frequency performance.
To ensure the reliability of the TSL1112RA-222JR33-PF in a high-reliability application, follow proper storage and handling procedures, ensure correct soldering and mounting, and consider using inductors with a higher reliability rating (e.g., automotive or aerospace grade). Additionally, perform thorough testing and validation of the circuit design to ensure that the inductor operates within its specified ratings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL1112RA-222JR33-PF Overview

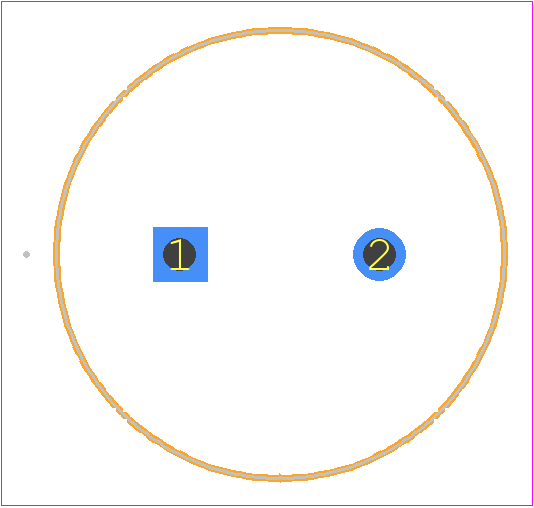

Use the download button to access the TSL1112RA-222JR33-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL11,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
