TSL1315RA-102JR78-PF - TDK

Description: TDK 1 mH ±5% Leaded Inductor, Max SRF:1MHz, Q:30, 1.2A Idc, 1Ω Rdc

Download TSL1315RA-102JR78-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL1315RA-102JR78-PF - TDK - PCB symbol
click to zoom
PCB Footprints

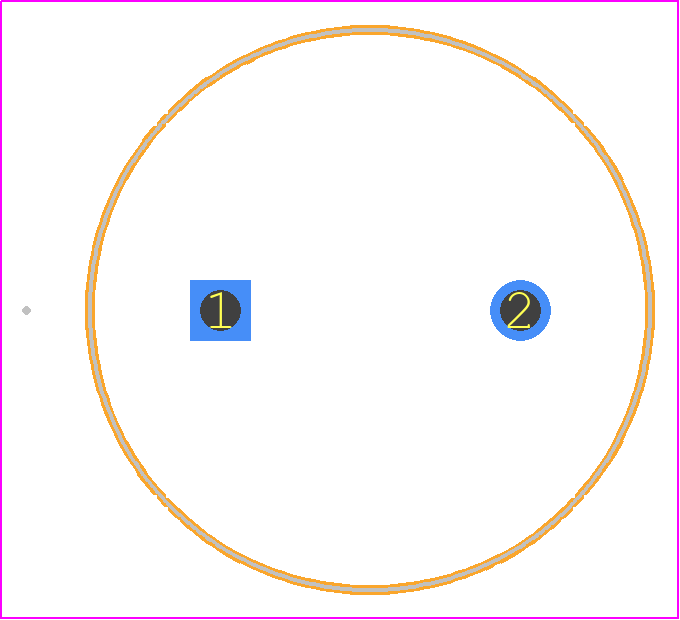

TSL1315RA-102JR78-PF - TDK PCB footprint - Other - Other - TSL1315
click to zoom
3D Models
TSL1315RA-102JR78-PF - TDK - 3D model - Other - TSL1315
click to zoom

TSL1315RA-102JR78-PF Details

  • Manufacturer Part Number:

    TSL1315RA-102JR78-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Coil

  • DC Resistance:

    1 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    7.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Length:

    17 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    30

  • Rated Current-Max:

    0.78 A

  • Self Resonance Frequency:

    1 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 252 KHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    5%

TSL1315RA-102JR78-PF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the TDK Corporation's application note or layout guide. It's essential to follow the recommended layout to ensure optimal performance, minimize parasitic inductance, and reduce electromagnetic interference (EMI).
  • The TSL1315RA-102JR78-PF has a maximum operating temperature of 125°C. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to dissipate heat. Follow the recommended thermal management guidelines in the datasheet or application notes.
  • The recommended soldering conditions and reflow profiles can be found in the TDK Corporation's soldering guide or application notes. It's crucial to follow the recommended profiles to prevent damage to the component and ensure reliable solder joints.
  • Follow the recommended storage and handling guidelines, avoid excessive mechanical stress, and ensure proper soldering and assembly. Implement a robust design, consider derating, and follow the recommended operating conditions to minimize the risk of early failure.
  • The TSL1315RA-102JR78-PF is designed to meet EMI and EMC standards. Ensure proper PCB layout, use shielding, and follow EMI/EMC guidelines to minimize radiation and susceptibility. Consult the datasheet and application notes for specific guidance.
