The recommended PCB layout for optimal performance of the TSL1315RA-220K4R2-PF includes keeping the component away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To handle EMI and RFI susceptibility, it is recommended to use shielding, filtering, and grounding techniques. The component should be placed in a shielded enclosure, and the PCB should be designed with EMI and RFI in mind. Additionally, the use of EMI filters and ferrite beads can help to reduce EMI and RFI susceptibility.
The maximum operating temperature range for the TSL1315RA-220K4R2-PF is -40°C to +125°C. However, it is recommended to operate the component within the recommended operating temperature range of -20°C to +85°C for optimal performance and reliability.
To ensure the reliability and longevity of the TSL1315RA-220K4R2-PF, it is recommended to follow proper storage and handling procedures, operate the component within the recommended operating conditions, and avoid exposing the component to mechanical stress, moisture, and extreme temperatures.
The recommended soldering profile for the TSL1315RA-220K4R2-PF is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It is recommended to use a soldering iron with a temperature control and to avoid applying excessive heat or force during the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL1315RA-220K4R2-PF Overview

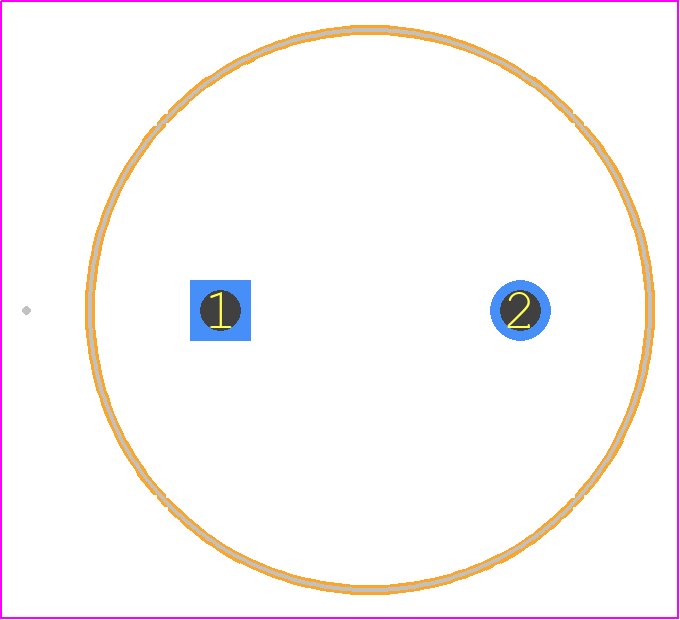

Use the download button to access the TSL1315RA-220K4R2-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL13,
or try a keyword search, such as Fixed Inductors
