The recommended PCB layout for the TSL1315RA-472JR37-PF involves keeping the component away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the signal traces. A 4-layer PCB with a dedicated ground plane is recommended. TDK Corporation provides a recommended PCB layout in their application notes.
To minimize EMI and RFI susceptibility, it is recommended to use a shielded enclosure, keep the component away from antennas and other EMI sources, and use EMI filters or shielding on the PCB. Additionally, ensure that the component is properly grounded and decoupled.
The TSL1315RA-472JR37-PF is a sensitive component and requires proper storage and handling. It should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps or mats to prevent electrostatic discharge damage.
The TSL1315RA-472JR37-PF is rated for operation up to 85°C. However, it is recommended to derate the component's performance at higher temperatures. Consult the datasheet and application notes for specific guidance on high-temperature operation.
Troubleshooting issues with the TSL1315RA-472JR37-PF involves checking the component's power supply, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the signal paths, and consult the datasheet and application notes for specific troubleshooting guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL1315RA-472JR37-PF Overview

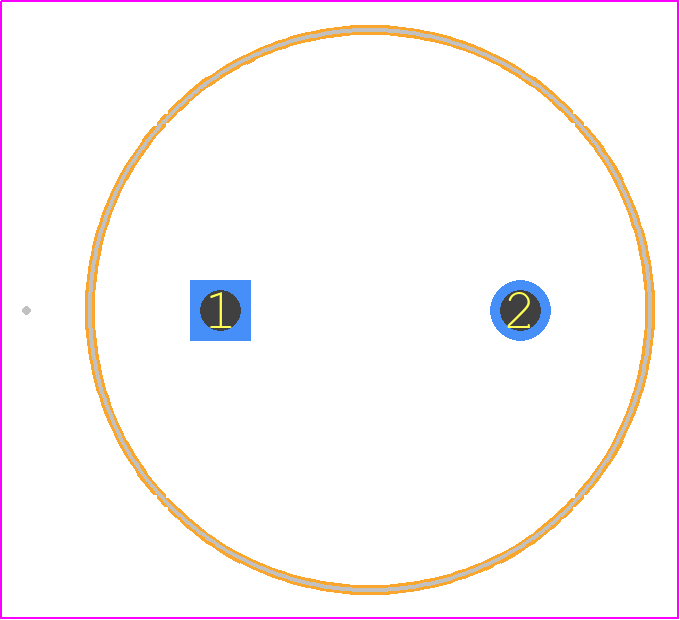

Use the download button to access the TSL1315RA-472JR37-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL13,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
