TSL1315RA-680K3R0-PF - TDK

Description: TDK 68 µH ±10% Leaded Inductor, Max SRF:4.4MHz, Q:40, 4.8A Idc, 68mΩ Rdc

Download TSL1315RA-680K3R0-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TSL1315RA-680K3R0-PF - TDK - PCB symbol
click to zoom
PCB Footprints

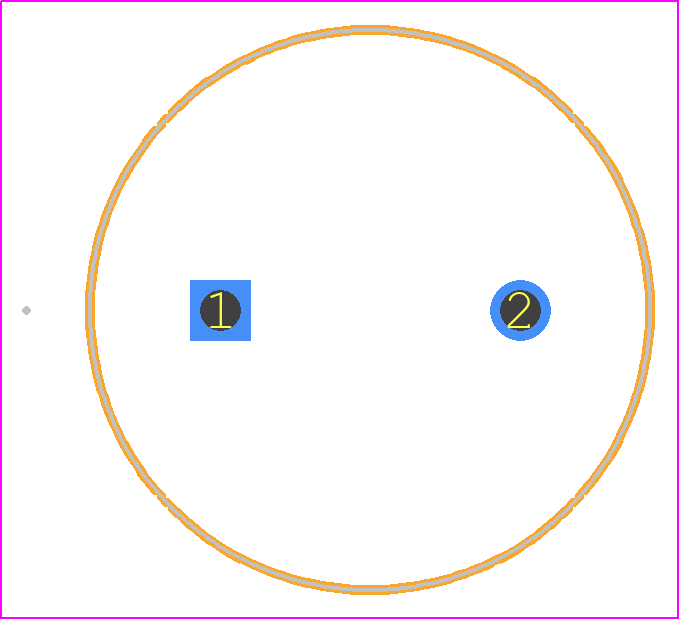

TSL1315RA-680K3R0-PF - TDK PCB footprint - Other - Other - TSL1315
click to zoom
3D Models
TSL1315RA-680K3R0-PF - TDK - 3D model - Other - TSL1315
click to zoom

TSL1315RA-680K3R0-PF Details

  • Manufacturer Part Number:

    TSL1315RA-680K3R0-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED, ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Construction:

    Coil

  • DC Resistance:

    0.068 Ω

  • Inductance-Nom (L):

    68 µH

  • Inductor Application:

    RF INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    5 mm

  • Lead Spacing:

    7.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Length:

    17 mm

  • Package Style:

    Radial

  • Packing Method:

    Ammo Pack

  • Quality Factor-Min (at L-nom):

    40

  • Rated Current-Max:

    3 A

  • Self Resonance Frequency:

    4.4 MHz

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Special Feature:

    Q MEASURED AT 2.52 MHZ

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%
