TSL25403 - ams OSRAM

Description: Ambient Light Sensors TSL25403 OQFN10 LF T&RDP

Download TSL25403 Model

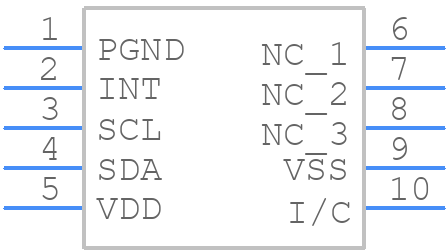

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TSL25403 - ams OSRAM PCB footprint - Other - Other - TSL25403-6
click to zoom
3D Models
TSL25403 - ams OSRAM  - 3D model - Other - TSL25403-6
click to zoom

TSL25403 Details

  • Manufacturer Part Number:

    TSL25403

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    ams OSRAM Group

  • Body Breadth:

    2 mm

  • Body Height:

    0.5 mm

  • Body Length or Diameter:

    2 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LCC10,.08SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    AMBIENT LIGHT SENSOR

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

TSL25403 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the TSL25403 involves placing the sensor on the top side of the board, with the photodiode facing upwards. The sensor should be placed away from any sources of electromagnetic interference (EMI) and radio-frequency interference (RFI). A ground plane underneath the sensor can help reduce noise.
  • To handle noise and interference in the TSL25403 output, use a low-pass filter or a capacitor to filter out high-frequency noise. Additionally, use a shielded cable or a twisted pair to connect the sensor to the microcontroller. Implementing a software-based filter or averaging the output readings can also help reduce noise.
  • The TSL25403's accuracy can be affected by temperature changes. The sensor's sensitivity decreases with increasing temperature, which can result in lower output values. To compensate for this, use temperature compensation algorithms or calibrate the sensor at different temperatures to ensure accurate readings.
  • Yes, the TSL25403 can be used in outdoor applications, but it's essential to consider the environmental factors that may affect its performance. The sensor is sensitive to UV radiation, which can cause degradation over time. Use a UV filter or a protective coating to minimize the effects of UV radiation. Additionally, ensure the sensor is properly sealed to prevent moisture ingress.
  • Calibrate the TSL25403 by taking readings at different known lux levels and storing the corresponding output values. Create a lookup table or use a calibration algorithm to map the output values to the corresponding lux levels. This process can be done during manufacturing or in the field using a calibration routine.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSL25403 Overview

Use the download button to access the TSL25403 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL25, or try a keyword search, such as Other Sensors/Transducers
