The recommended PCB layout and land pattern for the TSL25403M can be found in the ams OSRAM Group's application note AN000357, which provides detailed guidelines for PCB design and assembly.
Calibration of the TSL25403M involves adjusting the sensitivity and offset of the sensor to match the specific application requirements. ams OSRAM Group provides a calibration guide in their application note AN000358, which includes a step-by-step procedure for calibration.
The TSL25403M's accuracy can be affected by temperature variations. According to the datasheet, the sensor's sensitivity decreases by approximately 0.5% per degree Celsius. To compensate for temperature effects, engineers can use temperature compensation algorithms or implement a temperature sensor to adjust the lux readings accordingly.
Yes, the TSL25403M can be used in outdoor applications, but it requires proper protection from environmental factors such as moisture, UV radiation, and extreme temperatures. Engineers can use conformal coatings, potting compounds, or enclosures to protect the sensor, and ensure that the PCB design and assembly meet the required standards for outdoor use.
The TSL25403M can be interfaced with a microcontroller using an I2C or SMBus interface. Engineers can use the ams OSRAM Group's software development kit (SDK) and example code to implement the communication protocol and read data from the sensor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL25403M Overview

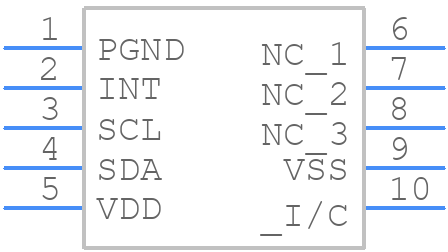

Use the download button to access the TSL25403M schematic symbol, PCB footprint, and 3D model.
