The recommended PCB layout for the TSL25413 involves placing the sensor on the top side of the board, with the photodiodes facing upwards. The sensor should be placed away from any sources of electromagnetic interference (EMI) and radio-frequency interference (RFI). A ground plane underneath the sensor can help reduce noise.
To handle noise and interference in the TSL25413 output, use a low-pass filter or a capacitor to filter out high-frequency noise. Additionally, use a shielded cable or a twisted pair to connect the sensor to the microcontroller. Implementing a noise-reducing algorithm in the firmware can also help.
The recommended operating temperature range for the TSL25413 is -40°C to 85°C. However, the sensor's accuracy and sensitivity may be affected at extreme temperatures. It's essential to consider the temperature range of the application and ensure proper thermal management.
Calibration of the TSL25413 involves adjusting the gain and offset values to match the specific requirements of the application. This can be done by taking measurements in different lighting conditions and adjusting the values accordingly. It's recommended to consult the application note and the datasheet for more information on calibration.
The maximum sampling rate of the TSL25413 depends on the mode of operation. In normal mode, the maximum sampling rate is 400 Hz, while in high-speed mode, it's 1200 Hz. However, the sampling rate may be limited by the microcontroller's I2C bus speed and the sensor's power consumption.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSL25413 Overview

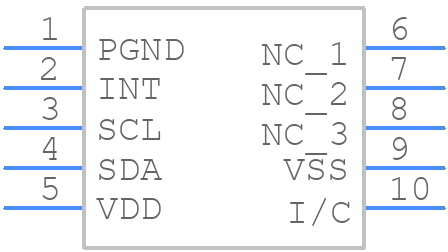

Use the download button to access the TSL25413 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSL25,
or try a keyword search, such as Other Sensors/Transducers
