TSM-103-04-S-DV-TR footprint, schematic symbol and 3D model by SAMTEC

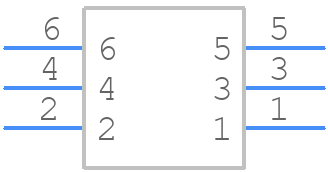

Symbol

click to zoom

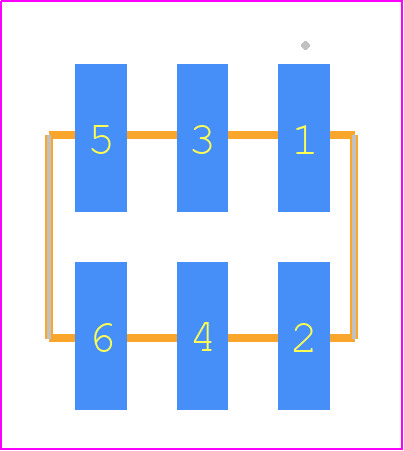

PCB Footprints

TSM-103-04-S-DV-TR - SAMTEC PCB footprint - Other - Other - TSM-103-YY-XXX-DV-TR

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSM-103-04-S-DV-TR
Part Number TSM-103-04-S-DV-TR
Manufacturer SAMTEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - TSM-103-YY-XXX-DV-TR
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TSM-103-04-S-DV-TR Details

Manufacturer Part Number:
TSM-103-04-S-DV-TR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 5 Days
Manufacturer:
Samtec Inc
YTEOL:
13
Additional Feature:
TAPE AND REEL
Body Breadth:
0.2 inch
Body Length:
0.3 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
PCB Contact Pattern:
RECTANGULAR
Packing Method:
TR
Plating Thickness:
30u inch
Rated Current (Signal):
7 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
6

TSM-103-04-S-DV-TR Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 1.5-2.5 in-lbs (0.17-0.28 Nm) as per Samtec's application notes.
Yes, the TSM-103-04-S-DV-TR connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw lock torque to ensure reliable connections.
The maximum operating temperature for the TSM-103-04-S-DV-TR connector is 125°C (257°F) as per the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The TSM-103-04-S-DV-TR connector is not sealed and is not intended for use in humid or wet environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying additional protection measures such as conformal coating.
The recommended mating cycle for the TSM-103-04-S-DV-TR connector is 500-1000 cycles, depending on the specific application and environmental conditions. Exceeding this cycle count may affect the connector's reliability and performance.
