Samtec provides a PCB footprint recommendation in their Technical Specification document, which includes land pattern and layout guidelines for optimal performance. It's essential to follow these guidelines to ensure reliable connections and minimize signal loss.
The TSM-108-01-L-DV-TR connector has a maximum operating temperature of 125°C. To manage thermal issues, ensure proper airflow, use thermal pads or heat sinks if necessary, and follow Samtec's guidelines for thermal management.
The TSM-108-01-L-DV-TR connector is rated for a minimum of 500 mating cycles. However, the actual lifespan may vary depending on factors such as insertion force, mating speed, and environmental conditions.
The TSM-108-01-L-DV-TR connector is designed for rugged applications and can withstand moderate levels of vibration. However, it's essential to ensure the connector is properly secured and follow Samtec's guidelines for use in harsh environments.
The contact resistance of the TSM-108-01-L-DV-TR connector is typically less than 10 mΩ. However, this value may vary depending on factors such as the mating cycle, environmental conditions, and connector cleanliness.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSM-108-01-L-DV-TR Overview

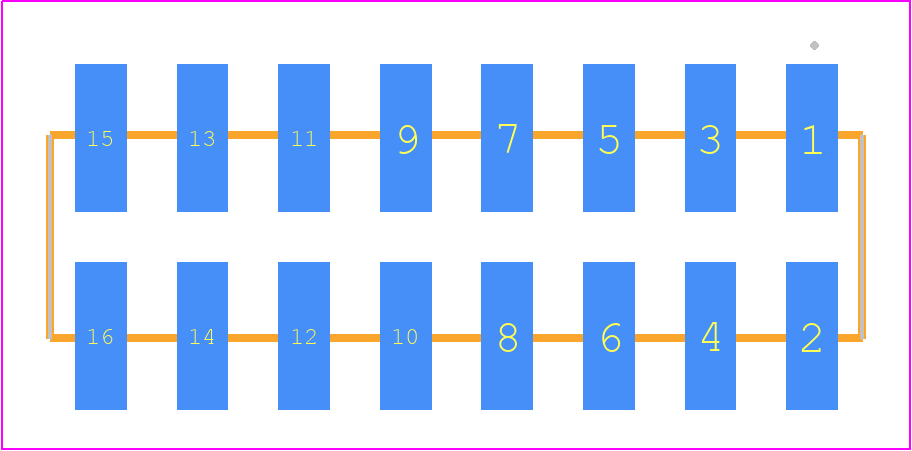

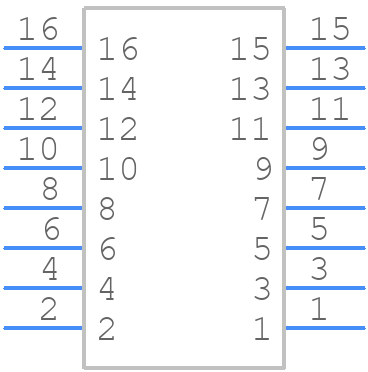

Use the download button to access the TSM-108-01-L-DV-TR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1,
or try a keyword search, such as Headers and Edge Type Connectors
