The recommended torque for the screw terminals of TSM-110-01-L-DV-A is 0.5-1.5 in-lbs (0.056-0.169 Nm) as per Samtec's application notes.
Yes, the TSM-110-01-L-DV-A is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
The TSM-110-01-L-DV-A has a operating temperature range of -55°C to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the connector is properly derated for high-temperature use to prevent damage or degradation.
While the TSM-110-01-L-DV-A is designed for 1.57 mm PCB thickness, it can be used with other thicknesses. However, Samtec recommends consulting their application notes and performing necessary testing to ensure reliable performance and prevent damage to the connector or PCB.
The TSM-110-01-L-DV-A has a mating cycle life of 500 cycles minimum, as per Samtec's specifications. This ensures reliable performance and minimizes the risk of connector failure due to repeated mating and unmating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSM-110-01-L-DV-A Overview

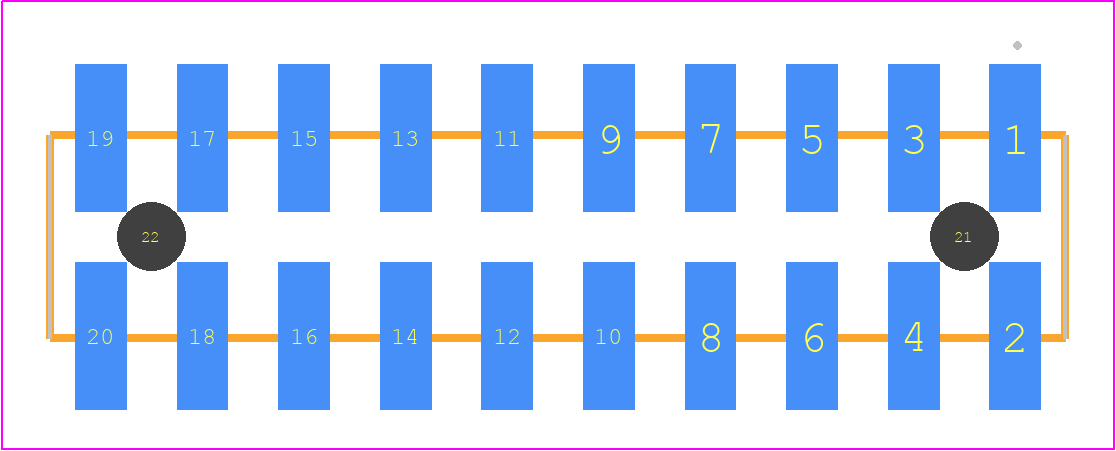

Use the download button to access the TSM-110-01-L-DV-A schematic symbol and PCB footprint.
