Technical Content
Part Image

TSM-112-01-L-SV-P-TR - SAMTEC

Description: Headers & Wire Housings .100" Surface Mount Terminal Strip

Download TSM-112-01-L-SV-P-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

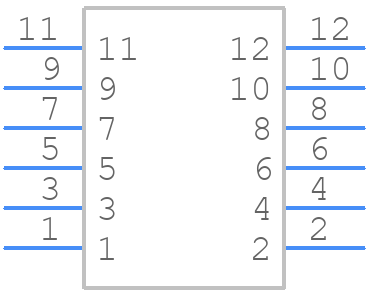

TSM-112-01-L-SV-P-TR - SAMTEC - PCB symbol
click to zoom
PCB Footprints

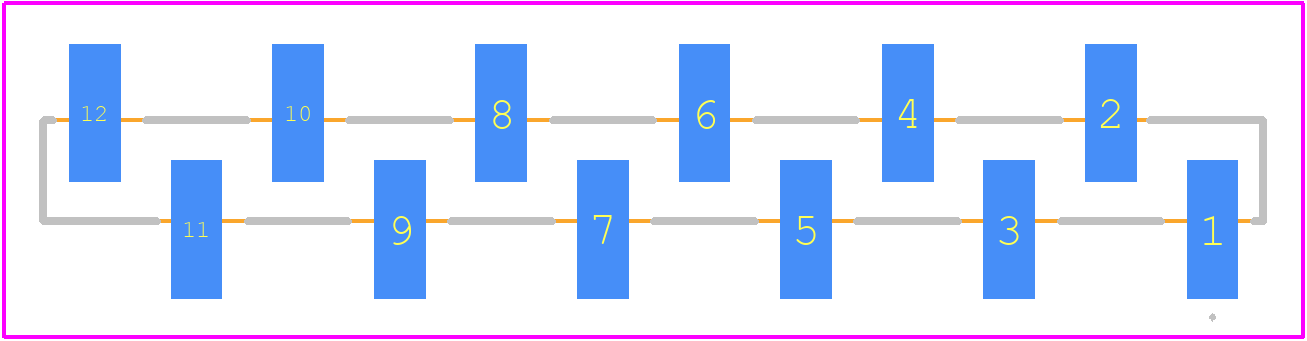

TSM-112-01-L-SV-P-TR - SAMTEC PCB footprint - Other - Other - TSM-112-01-L-SV-P-TR-4
click to zoom
3D Models
TSM-112-01-L-SV-P-TR - SAMTEC - 3D model - Other - TSM-112-01-L-SV-P-TR-4
click to zoom

TSM-112-01-L-SV-P-TR Details

  • Manufacturer Part Number:

    TSM-112-01-L-SV-P-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.15 inch

  • Body Length:

    1.2 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    3.175 mm

  • Packing Method:

    TR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    7 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

TSM-112-01-L-SV-P-TR Frequently Asked Questions (FAQs)

  • The recommended mating sequence for TSM-112-01-L-SV-P-TR is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the TSM-112-01-L-SV-P-TR is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
  • The TSM-112-01-L-SV-P-TR is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
  • The recommended torque for the screw locks on the TSM-112-01-L-SV-P-TR is 0.5-1.5 in-lbs (0.056-0.169 Nm). Over-torquing can damage the connector, so it's essential to follow the recommended torque specification.
  • The TSM-112-01-L-SV-P-TR has a specific mating height and stack height. While it's possible to use this connector with a different mating height or stack height, it's essential to consult with Samtec's application engineers to ensure compatibility and prevent potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSM-112-01-L-SV-P-TR Overview

Use the download button to access the TSM-112-01-L-SV-P-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSM-1, or try a keyword search, such as Headers and Edge Type Connectors
