TSM-113-01-L-DV-LC footprint, schematic symbol and 3D model by SAMTEC

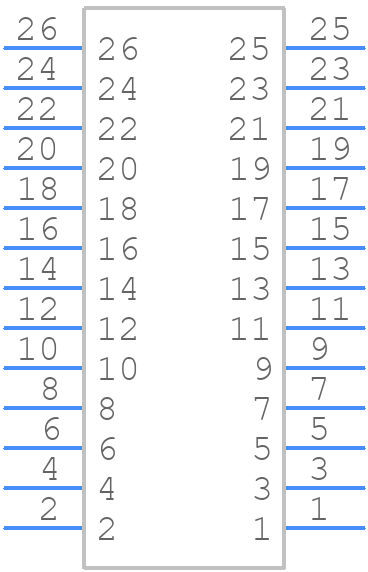

Symbol

click to zoom

PCB Footprints

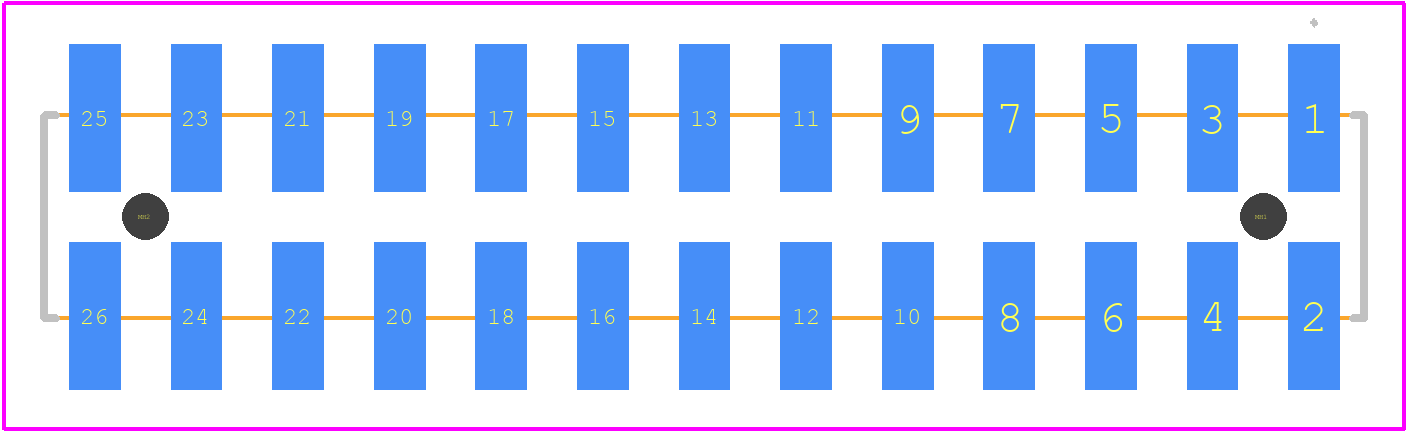

TSM-113-01-L-DV-LC - SAMTEC PCB footprint - Other - Other - TSM-113-01-L-DV-LC-1

click to zoom

3D Models

TSM-113-01-L-DV-LC - SAMTEC - 3D model - Other - TSM-113-01-L-DV-LC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSM-113-01-L-DV-LC
Part Number TSM-113-01-L-DV-LC
Manufacturer SAMTEC
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - TSM-113-01-L-DV-LC-1
Released Date Aug 18, 2023
Last Modified Date Aug 18, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

TSM-113-01-L-DV-LC Details

Manufacturer Part Number:
TSM-113-01-L-DV-LC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
9.1
Additional Feature:
E.L.P.
Body Breadth:
0.2 inch
Body Length:
1.3 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mating Contact Row Spacing:
0.1 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
10u inch
Rated Current (Signal):
7 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
26

TSM-113-01-L-DV-LC Frequently Asked Questions (FAQs)

The recommended mating sequence for TSM-113-01-L-DV-LC is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the TSM-113-01-L-DV-LC is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and minimizes the risk of contact damage or disconnection due to vibration.
The TSM-113-01-L-DV-LC is rated for operating temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
The maximum current rating for the TSM-113-01-L-DV-LC is 1.7A per contact. However, it's crucial to consider the overall system design, including the PCB layout, wire gauge, and other components, to ensure safe and reliable operation.
The TSM-113-01-L-DV-LC has a standard mating height of 1mm and a stack height of 3mm. While it's possible to customize the mating height or stack height, it's essential to consult with Samtec's application engineers to ensure compatibility and feasibility.

Trust Checks

Community Provided

System Verified

Community Approved

TSM-113-01-L-DV-LC Overview

Use the download button to access the TSM-113-01-L-DV-LC schematic symbol, PCB footprint, and 3D model.
