TSM-134-01-TM-DV-P-TR - SAMTEC

Description: 68 Position, Dual-Row, .100" Surface Mount Terminal Strip

Download TSM-134-01-TM-DV-P-TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this TSM-134-01-TM-DV-P-TR model

Email notifications will be applied after download.

Send part feedback

Symbol

TSM-134-01-TM-DV-P-TR - SAMTEC - PCB symbol

PCB Footprints

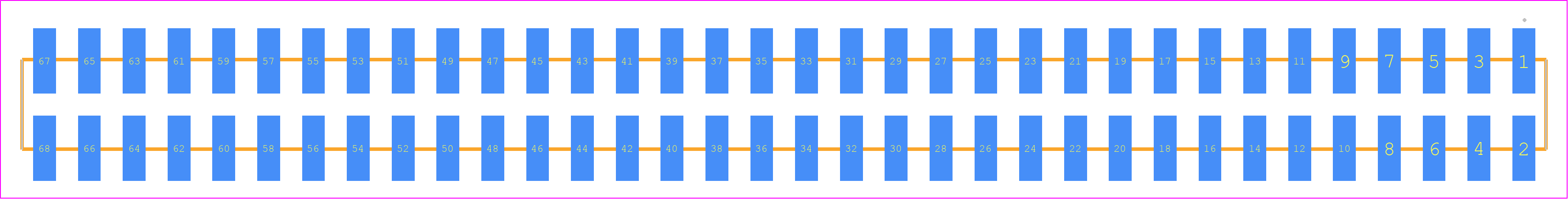

TSM-134-01-TM-DV-P-TR - SAMTEC PCB footprint - Other - Other - TSM-134-YY-ZZZ-DV-P-TR

Datasheet Download Datasheet
Stock & Prices Price & Stock for TSM-134-01-TM-DV-P-TR
Part Number TSM-134-01-TM-DV-P-TR
Manufacturer SAMTEC
Pin Count 68
Part Category Connector
Package Category Other
Footprint Name Other - TSM-134-YY-ZZZ-DV-P-TR
Released Date Jun 17, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

TSM-134-01-TM-DV-P-TR Details
