A recommended PCB layout for optimal thermal performance would be to have a large copper area on the top and bottom layers, connected to the drain pin, to act as a heat sink. Additionally, using thermal vias to connect the top and bottom layers can help to dissipate heat more efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 175°C. Additionally, consider using a heat sink, and ensure good thermal conductivity between the device and the heat sink. It's also crucial to follow proper PCB design and layout guidelines to minimize thermal resistance.
Exceeding the maximum drain-source voltage (Vds) rating can lead to permanent damage to the device, including gate oxide breakdown, junction breakdown, or even physical destruction of the device. It's essential to ensure that the device operates within the recommended Vds rating to prevent damage and ensure reliable operation.
To protect the device from electrostatic discharge (ESD), it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider using ESD protection devices, such as TVS diodes or ESD arrays, in the circuit design to absorb any ESD events.
Using a fast switching speed can reduce switching losses and improve overall efficiency, but it may also increase electromagnetic interference (EMI) and radiated emissions. On the other hand, using a slow switching speed can reduce EMI and radiated emissions, but it may increase switching losses and reduce overall efficiency. The optimal switching speed depends on the specific application requirements and constraints.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSP20U60S Overview

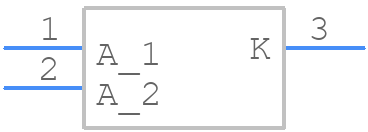

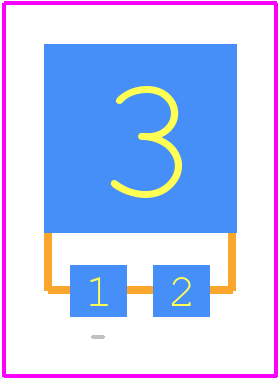

Use the download button to access the TSP20U60S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSP20,
or try a keyword search, such as Rectifier Diodes
