Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the TSR1-2450SM is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Traco Power recommends following the IPC-9592 standard for vibration testing.
The TSR1-2450SM meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, engineers should follow the guidelines outlined in the datasheet and application notes, and consult with Traco Power's technical support team if necessary.
The maximum allowable capacitance for the output filter is 10uF. Exceeding this value may affect the stability of the module. Engineers should consult the application notes and datasheet for guidance on output filter design.
Yes, the TSR1-2450SM can be used in a redundant configuration. However, engineers should ensure that the modules are properly synchronized and that the system is designed to handle the increased power consumption and heat generation. Traco Power recommends consulting with their technical support team for guidance on redundant configuration design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TSR1-2450SM Overview

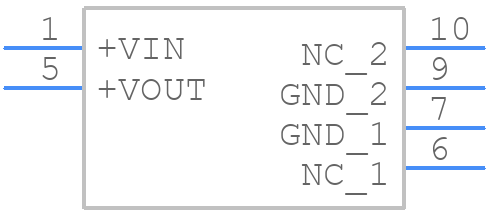

Use the download button to access the TSR1-2450SM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TSR1-,
or try a keyword search, such as Power Supply Modules
